Custom CZ0873/4、CZ0874/4 LED Explosion-proof light fittings Suppliers, Company

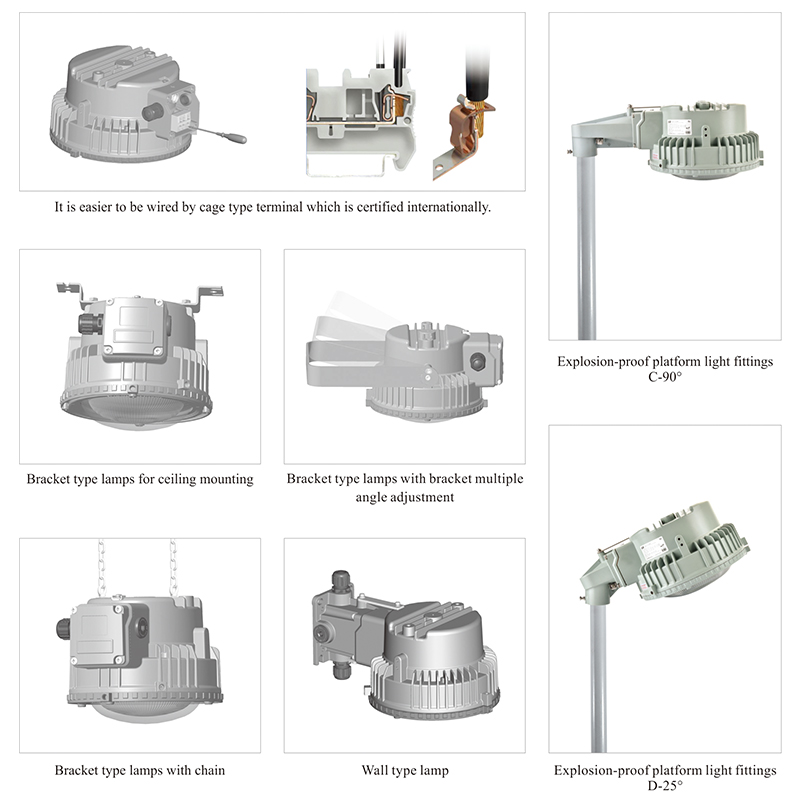

CZ0873/4、CZ0874/4 LED Explosion-proof light fittings

Prodcuts Features:

● It is long life and maintenance-free which the service life is up to 50000 hours and the maintenance-free of long term.
● There is a feature of good electromagnetic compatibility and it does not cause interference to the system power grid.
● It is not influenced by the voltage fluctuations and can be operated in the wide voltage range of AC100 ~ 250V.
● There is a good performance of vibration due to the LED is the solid-state light source.
● The highest class of flameproof is up to II C.
● It is convenient to be mounted and maintained.
● The degree of protection is up to IP 66.

Product Parameter

Product type：	LED Explosion-proof light fittings
Certification：	CCC
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	-40℃
Max.ambient temperature：	+55℃
Degree of protection：	IP66
Rated voltage：	AC100 ～ 250V 50/60Hz

Certification：	China: CNEx17.1229 (CZ0873/4) CNEx17.1230 (CZ0874/4) Ex mark: Ex de II C T6/T5 Gb / Ex tD A21 IP66 T80°C
Intended use：	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature use:	-20℃ to+40℃/+55℃ -40℃ to+40℃/+55℃
Degree of protection:	IP66
Rated voltage：	100 ~ 250V AC 50/60Hz
Light source：	LED
Colour temperature：	5700K
Power factor：	＞0.98
Terminal:	L1, N cage type terminal 2-2.5mm² , PE terminal: 2×10mm²

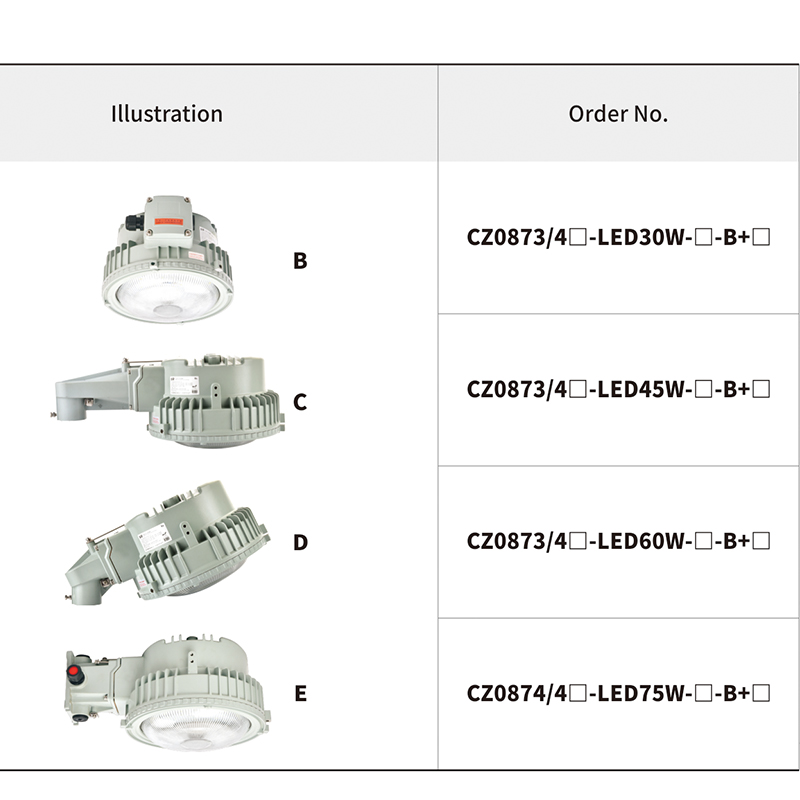

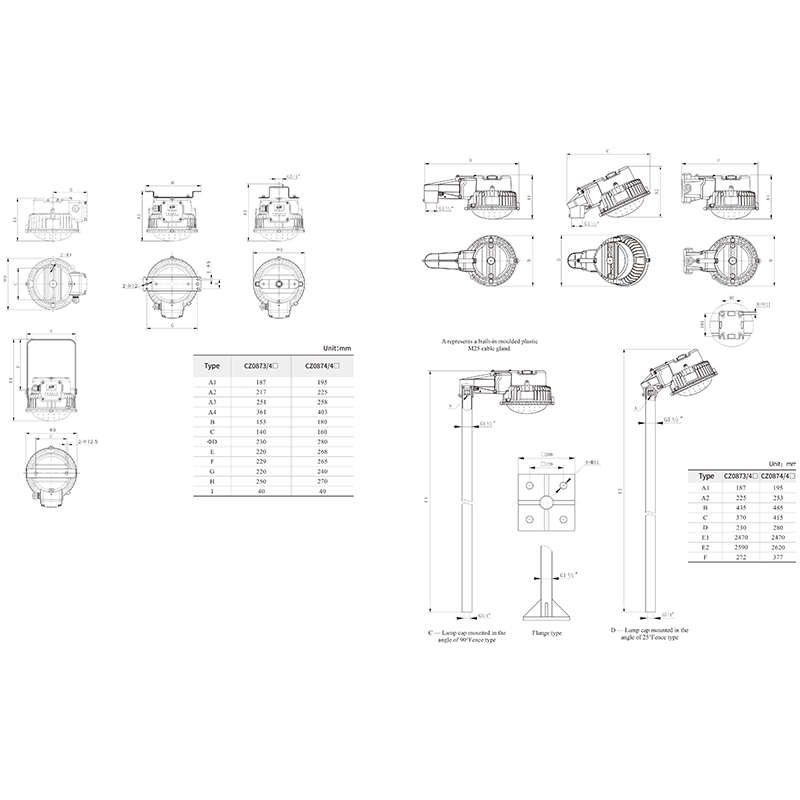

Cable entry：	B—Bracket type lamp (Standard configuration) Moulded plastic 1×M25×1.5, Outside diameter: Φ8-17mm Moulded plastic 1×M25×1.5 stopping plug C—Platform type lamp 90°(Standard configuration) D—Platform type la mp 25°(Standard configuration) Moulded plastic 1×M25×1.5, Outside diameter: Φ8-17mm E—Wall type lamp (Standard configuration) Moulded plastic 1×M25×1.5, Outside diameter: Φ8-17mm Moulded plastic 3×M25×1.5 stopping plug

About CZ

CZ Electric Co., Ltd was established in 1990, is a CZ0873/4、CZ0874/4 LED Explosion-proof light fittings suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.

0

Founded in 1990
0+

More than 100 international
explosion-proof certifications
0

Five production modules
0+

More than 120
patents
0+

More than 50 countries
and regions around the world

Certification

High-tech Enterprises
ISO9001 ISO14001 OHSAS18001
ATEX EU explosion-proof quality management system certification
IECEx
Intellectual Property Management System Certificate
Safety Production Standardized Enterprise Level 3
Zhejiang Manufacturing Qualification Certification

Honor

Famous Trademark in Zhejiang Province
Patent Demonstration Enterprise Bronze Medal
People's Forum
Zhejiang High-tech Enterprise R&D Center
Charity Star Award

D8722/1、D8722/2	Ceiling bracket D8722/1：Accessories for bracket type lamp, for CZ0873/4 D8722/2：Accessories for bracket type lamp, for CZ0874/4	D8701/1、D8701/2	Mounting bracket D8701/1：Accessories for bracket type lamp, for CZ0873/4 D8701/2：Accessories for bracket type lamp, for CZ0874/4
D8702/1、D8702/2	Mounting bracket of pendant type D8702/1：Accessories for bracket type lamp, for CZ0873/4 D8702/2：Accessories for bracket type lamp, for CZ0874/4	D732	G3/4"-300mmStraight pipe Accessories for bracket type, galvanized steel pipe material and powder coated surface
D623	Chain type accessories(500mm) Accessories for bracket type lamp, M8 bolt, made from steel with zinc-coated surface	D8725	Lamp pole of fence type Accessories for platform type lamp, G1 1/2 " galvanized steel pipe material and powder coated surface
D8726	Accessories for platform type lamp, G1 1/2 " galvanized steel pipe material and powder coated surface	D8732/1，D8732/2	Mesh Used for CZ0873/4 light fittings, the material is stainless steel Used for CZ0874/4 light fittings, the material is stainless steel
7718/57-1×LED30W 7718/57-1×LED45W 7718/57-1×LED60W 7718/57-1×LED75W	LED Driver AC100 ~ 250V
