CZ0875/0876 Full plastic explosion-proof LED linear light fittings (Pole Mounting)

CZ0875/0876 Full plastic explosion-proof LED linear light fittings (Pole Mounting)

Prodcuts Features:

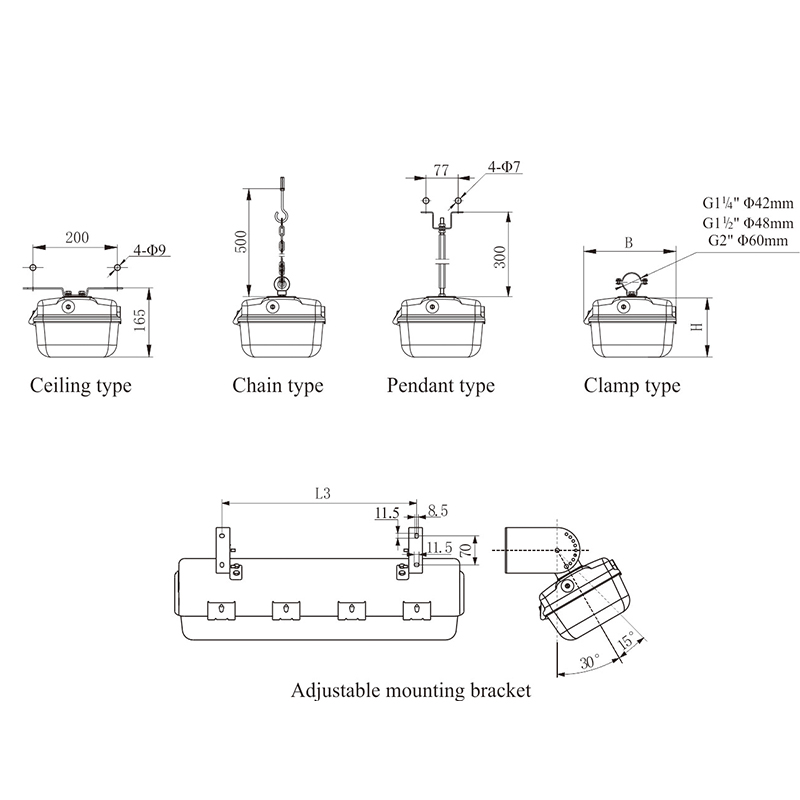

● Full plastic explosion-proof LED linear light fittings are available in mounting: ceiling type, chain type, pendant type, wall type or clamp type.
● Full plastic explosion-proof LED linear light fittings (pole mounting) are available in mounting: platform fence type, platform flange type, or wall type.
● Explosion-proof isolation switch and explosion-proof fuse are optional.
● Emergency versions have indicator indicating fault if there is, charging and discharging.
● The structural design is never distortion and its protection degree is up to IP66.
● IECEx and ATEX certified.

Product Parameter

Product typer：	Full plastic explosion-proof LED linear light fittings (Pole Mounting)
Certificationr：	CCC IECEX ATEX
Application range (zones)r：	3G/Gc/zone 2；2D/Db/zone 21
Min.ambient temperaturer：	T5：-25℃ T4：-25℃
Max.ambient temperaturer：	T5：+40℃ T4：+55℃
Degree of protectionr：	IP66 ( IP64 with breather CZ0527 )
Rated voltager：	AC100 ～ 250V 50/60Hz
Color temperaturer：	5700K
Color rendering indexr：	Ra≥80
Power factor：	λ＞0.95

Get a quote

Main technical data
Optional Ex components
Video
Accessorise
Download

Certification：	China: CE18.5070X Ex mark:Ex e op is II C T5/T4 Gc Ex tD op is A21 IP66 T80°C IECEx: IECEx CML 18.0065X Ex mark: Ex ec op is II C T5/T4 Gc Ex tb op is IIIC T80°C Db ATEX: CML 18ATEX3119X Ex mark: II 3G Ex ec op is II C T5/T4 Gc ATEX: CML 18ATEX3252X Ex mark: II 2D Ex tb op is IIIC T80°C Db
Intended use:	Can be used in zone 2 Can be used in zone 21 and zone 22
Ambient temperature:	T5 at -25℃≤Ta≤+40℃ T4 at -25℃≤Ta≤+55℃
Degree of protection:	IP66 ( IP64 with breather CZ0527 )
Rated voltage:：	AC100 ～ 250V 50/60Hz
Color temperature：	5700K
Color rendering index：	Ra≥80
Power factor：	λ＞0.95
Terminals：	L1, L2, L, N, PE, each terminal 2×1.5-10mm²
Cable entry：	Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm Moulded plastic 2×M25×1.5 stopping plugs Pole mounting:Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm

CZ0220 Series Plastic cable glands, stopping plugs

Read More

CZ0527、CZ1725/27 Increased safety breathing, drainage valve

Read More

CZ1725/2A Metal cable glands

Read More

CZ1725/1A Metal cable glands

Read More

CZ1725/1B Metal cable glands

Read More

CZ1725/1C Metal cable glands

Read More

CZ1725/3A Metal stopping plug

Read More

CZ1725/4A The reducer

Read More

CZ0220 Series Plastic stopping plugs, the reducer

Read More

CZ0221 Metal cable glands

Read More

CZ0226 Increased safety cable glands

Read More

CZ0227 Increased safety metal cable glands

Read More
Video

D622	Accessories for pendant type	D623	Accessories for chain type
J200、J200/304;J300、J300/304;J400、J400/304	Accessories for clamp type M8 bolt mounting J200：G1 1/4"Φ42mm Steel J200/304：G1 1/4"Φ42mm Stainless steel J300：G1 1/2"Φ48mm Steel J300/304：G1 1/2"Φ48mm Stainless steel J400：G2"Φ60mm Steel J400/304：G2"Φ60mm Stainless steel	D621、D621/304	Support for ceiling type Steel、Stainless steel
D8738	Adjustable mounting bracket	D8709、D8710、D8711	Lamp pole of wall type: D8709/1A Used for CZ0865 LED linear light fittings D8709/2A Used for CZ0866 LED linear light fittings Lamp pole of fence type: D8710/1A Used for CZ0865 LED linear light fittings D8710/2A Used for CZ0866 LED linear light fittings Lamp pole of flange type: D8711/1A Used for CZ0865 LED linear light fittings D8711/2A Used for CZ0866 LED linear light fittings

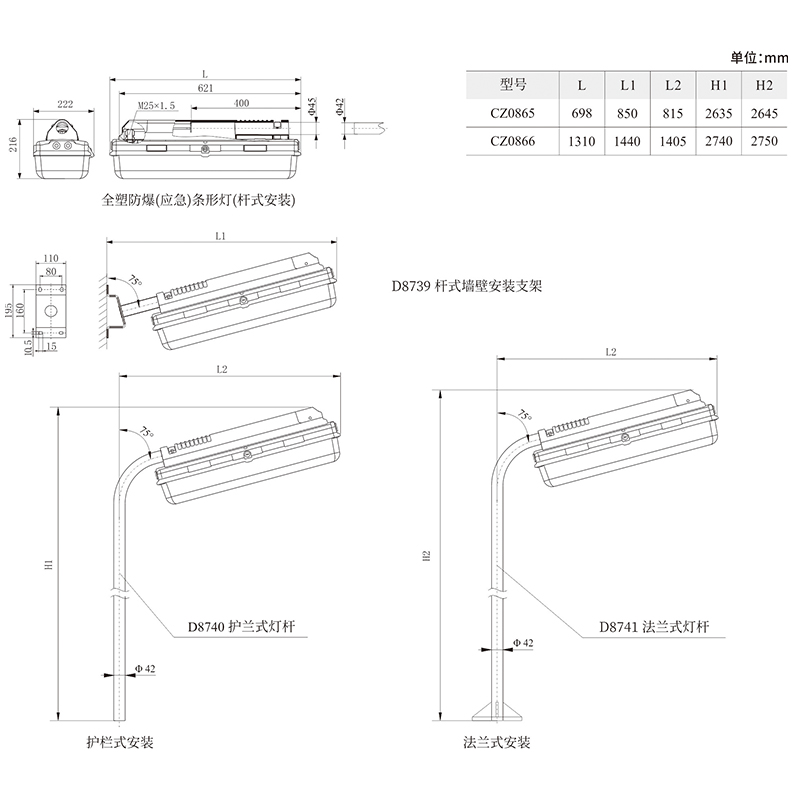

D8739	Wall mounting bracket of pole type Use for pole mounting linear light fittings	D8740、D8741	Lamp pole of fence type: D8740 Use for pole mounting linear light fittings Lamp pole of flange type: D8741 Use for pole mounting linear light fittings
D8705、D8706	Lamp pole of fence type: D8705 Lamp pole of flange type: D8706	D8742/1、D8742/2	Mounting bracket D8742/1 Used for CZ0865 LED linear light fittings D8742/2 Used for CZ0866 LED linear light fittings
D8714/2-M25	Metal earthing nut 2-M25×1.5	CZ0804	Explosion-proof fuse module (optional fittings) CZ0804/T0.8A CZ0804/T1.25A CZ0804/T6.3A
CZ0207-1	Explosion-proof isolation switch module (optional fittings)	CZ0527 2515 e001	Increased safety breathing, drainage valve

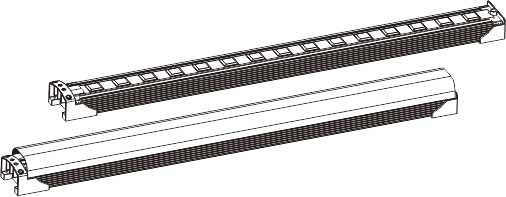

305	With conductor terminal board 305/21: 1×LED 30W 305/22：2×LED 30W 3P terminal,Conductor 3×2.5mm² max16A, L1+N+PE 305/31: 1×LED 30W 305/32：2×LED 30W 4P terminal,Conductor 4×2.5mm² max16A, L1+L2+N+PE	CZ1718/11	Explosion-proof LED light source module CZ1718/11-LED30W1: Without diffuser Power: 30W / 3851 lm / 5700K CZ1718/11-LED30W2 With diffuser Power: 30W / 3366 lm / 5700K
CZ1718/57-2×LED30W	Explosion-proof power supply module Power: 2×30W, Used for 2×LED30W linear light fittings AC100~250V	CZ0819/3.0Ah 7.2V CZ0819/4.5Ah 7.2V	Explosion-proof battery module
CZ0802/1	Explosion-proof emergency indicator module Three colors for LED: red, yellow, green	D601	M8/SW13 Sleeve spanner Used for CZ0865、CZ0866， Material: Fine quality steel with galvanized surface
CZ1618/58-2×LED30W	Type of protection： II 2G Ex eb q IIC Gb Normal power: 2×30W, emergency power: 2×10W, Used for 2×LED30W emergency LED linear light fittings AC100~250V
