Prodcuts Features:
● The highest class of flameproof is up to IIC.● Many patented technologies.
● It is convenient to be mounted and maintained.
● The degree of protection is up to IP66.
● International IECEx Approval, Europe union ATEX Approval.
| Certification： |
China: CNEx14.0611 Ex mark: Ex de II C T4/T5/T6 Gb DIP A21 TA, T4/T5/T6 IECEx: IECEx CQM13.0025X Ex mark: Ex d e II C T4/T5/T6 Gb Ex tb IIIC T130°C/T95°C/T80°C Db ATEX:TUV14 ATEX 7580X Ex mark: II 2 GD Ex d e II C T4/T5/T6 Gb Ex tb IIIC T130°C/T95°C/T80°C Db |
| Intended use： | Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22 |
| Ambient temperature use: | -20℃ to+40℃/+55℃ -40℃ to+40℃/+55℃ |
| Degree of protection: | IP66 |
| Rated voltage： | 220V AC、230V AC、240V AC 230V/240V AC、220V/230V/240V AC 50Hz、60Hz |
| Terminal： | L1, N cage type terminal 2-2.5mm² , PE terminal: 2×10mm² |

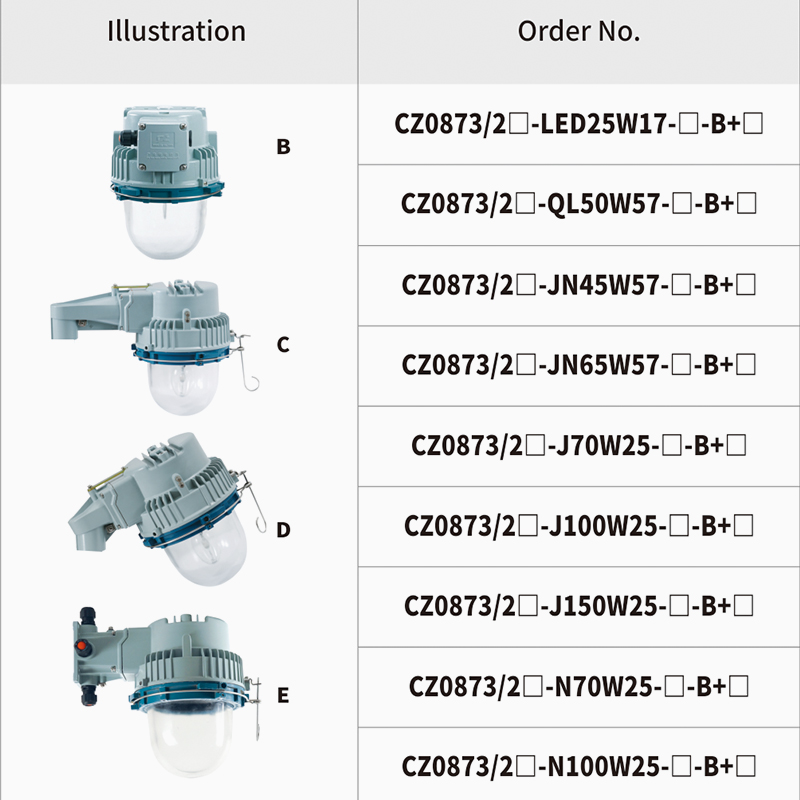

| Cable entry： | B—Bracket type lamp (Standard configuration) Moulded plastic 1×M25×1.5, outside diameter: Φ8-17mm Moulded plastic 1×M25×1.5 stopping plug C—Platform type lamp 90°(Standard configuration) D—Platform type lamp 25°(Standard configuration) Moulded plastic 1×M25×1.5, outside diameter: Φ8-17mm E—Wall type lamp (Standard configuration) Moulded plastic 1×M25×1.5, outside diameter: Φ8-17mm Moulded plastic 3×M25×1.5 stopping plugs |
