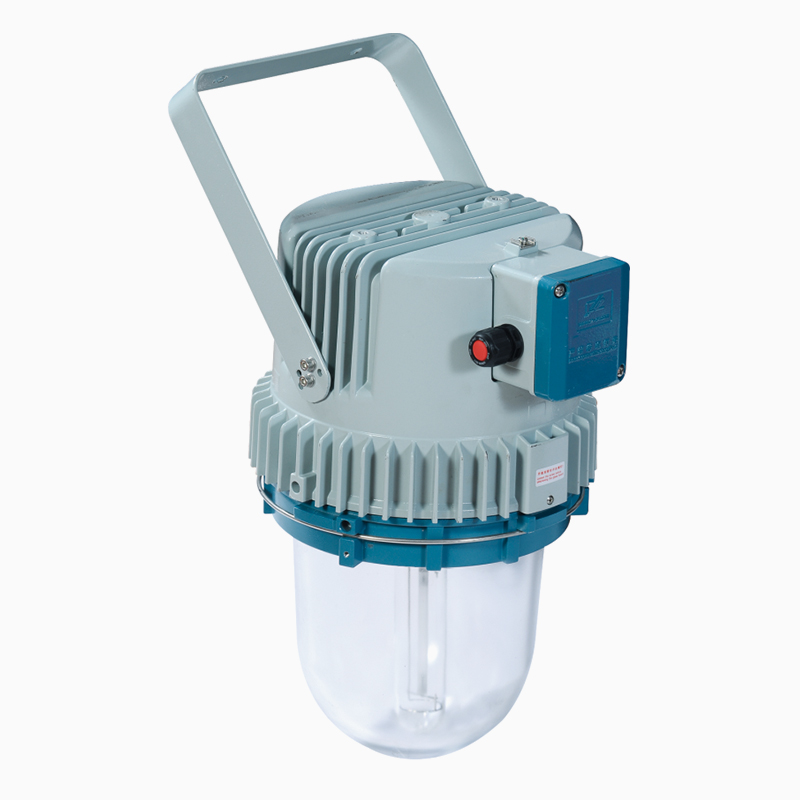

Product type： |
Explosion-proof light fittings |
|
Certification： |
CCC IECEX ATEX |
|
Application range (zones)： |
2G/Gb/zone 1；2D/Db/zone 21 |
|
Min.ambient temperature： |
-40℃ |
|
Max.ambient temperature： |
+55℃ |
|
Degree of protection： |
IP66 |
|
Rated voltage： |
220V AC 50Hz |
| Certification： |
China: CNEx14.0587 Ex mark: Ex de II C T3/T4/T5 Gb DIP A21 TA, T3/T4/T5 IECEx: IECEx CQM13.0025X Ex mark: Ex d e II C T3/T4/T5 Gb Ex tb IIIC T195°C/T130°C/T95°C Db ATEX:TUV14 ATEX 7580X Ex mark: II 2 GD Ex d e II C T3/T4/T5 Gb Ex tb IIIC T195°C/T130°C/T95°C Db |
| Intended use： | Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22 |
| Ambient temperature use: | -20℃ to+40℃/+55℃ -40℃ to+40℃/+55℃ |
| Degree of protection: | IP66 |
| Rated voltage： | 220V AC 50Hz 220V AC、230V AC、240V AC 50Hz、60Hz |

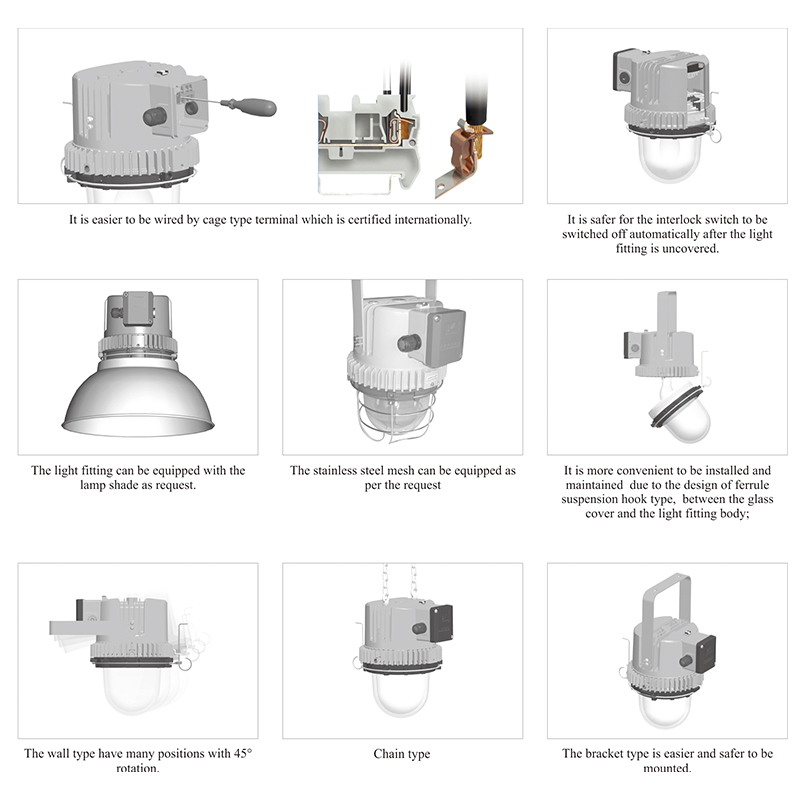

| Terminal： | L1, N cage type terminal 2-2.5mm² , PE terminal: 2×10mm² |
| Cable entry： | Moulded plastic 1×M25×1.5, Outside diameter: Φ8-17mm Moulded plastic 1×M25×1.5 stopping plug |
 D8701/1、D8701/2
|
Mounting bracket D8701/1：Used for CZ0871 light fittings, the material is high quality steel with sprayed plastic surface D8701/2：Used for CZ0872 light fittings, the material is high quality steel with sprayed plastic surface |
 D8702/1、D8702/2
|
Mounting bracket of pendant type D8702/1：Used for CZ0871 light fittings, the material is high quality steel with sprayed plastic surface D8702/2：Used for CZ0872 light fittings, the material is high quality steel with sprayed plastic surface |
 D623
|
Chain type accessories For M8 lifting eye bolt, the material is high quality steel with galvanization on surface |
 D732
|
G3/4" Straight pipe For pendant type light fittings |

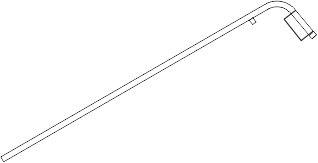

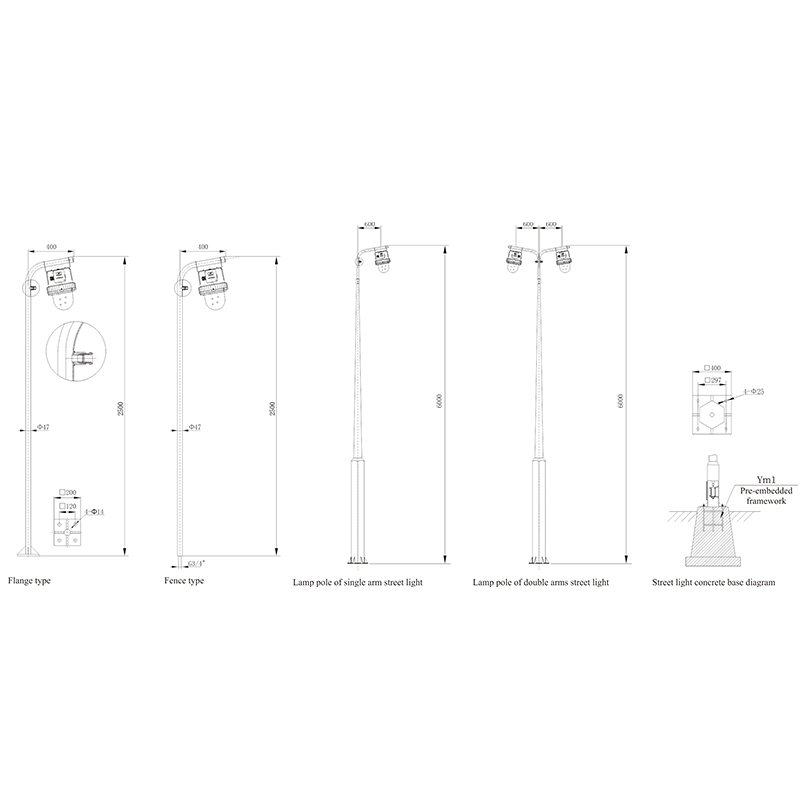

 D8705
|
Lamp pole of fence type Used for CZ0871, CZ0872, material is high quality galvanized steel, with the surface sprayed plastic. |
 D8706
|
Lamp pole of flange type Used for CZ0871, CZ0872, material is high quality galvanized steel, with the surface sprayed plastic. |

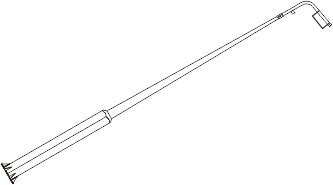

 D8707
|
Lamp pole of single arm street light Used for CZ0871, CZ0872, material is high quality galvanized steel, with the surface sprayed plastic. |

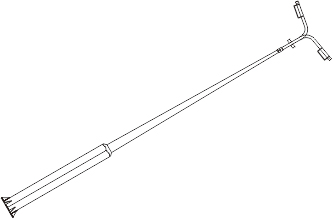

 D8708
|
Lamp pole of double arms street light Used for CZ0871, CZ0872, material is high quality galvanized steel, with the surface sprayed plastic. |
 D8720
|
Flexible conduit Used for connecting the lamp poles and the light fittings |
 D8703/1、D8703/2
|
Parts of toughen glass cover D8703/1：Used for CZ0871 light fittings, with stainless steel ringer D8703/2：Used for CZ0872 light fittings, with stainless steel ringer |
 D8704/1、D8704/2
|
Mesh D8704/1：Used for CZ0871 light fittings, the material is stainless steel D8704/2：Used for CZ0872 light fittings, the material is stainless steel |
 D8724/1、D8724/2
|
lamp shade D8724/1：Used for CZ0871 light fittings D8724/2：Used for CZ0872 light fittings |
 K547H、K548
|
Ceramics lampholder K547H：Specification:E27 K548：Specification:E40 |
 OSRAM/45W、OSRAM/65W
|
"OSRAM" energy-saving lamp bulb (Helix type) |
 HWL/125W、HWL/160W、HWL/250W、HWL/500W
|
Self-ballasted mercury vapor lamp blub-Z |
 PZ/200W、PZ/300W、PZ/500W
|
Incandescent lamp blub-B |

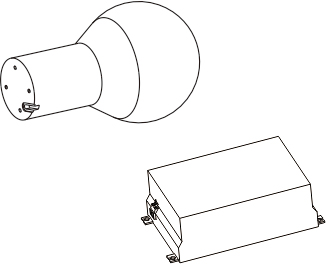

 WJ50T、WJ85P、WJ135PA、WJ165PA、HFG-50AC、HFG-85AC、HFG-135AC、HFG-165AC
|
Electromagnetic induction energy-saving lamp bulb High frequency generator |
 JL Z50KN、HQI-E 70/N、
HQI-E 100/N、HQI-E 150/N、 HQI-T 250/D、HQI-BT 400/D |
Metal halide lamp bulb-J |
 NAV-T 70、NAV-T 100SUPER、
NAV-T 150、NAV-T 250、NAV-T 400 |
High pressure sodium vapor lamp bulb-N |
 HQL-125
|
High pressure mercury vapor lamp bulb-G |
