CZ0871 Explosion-proof light fittings

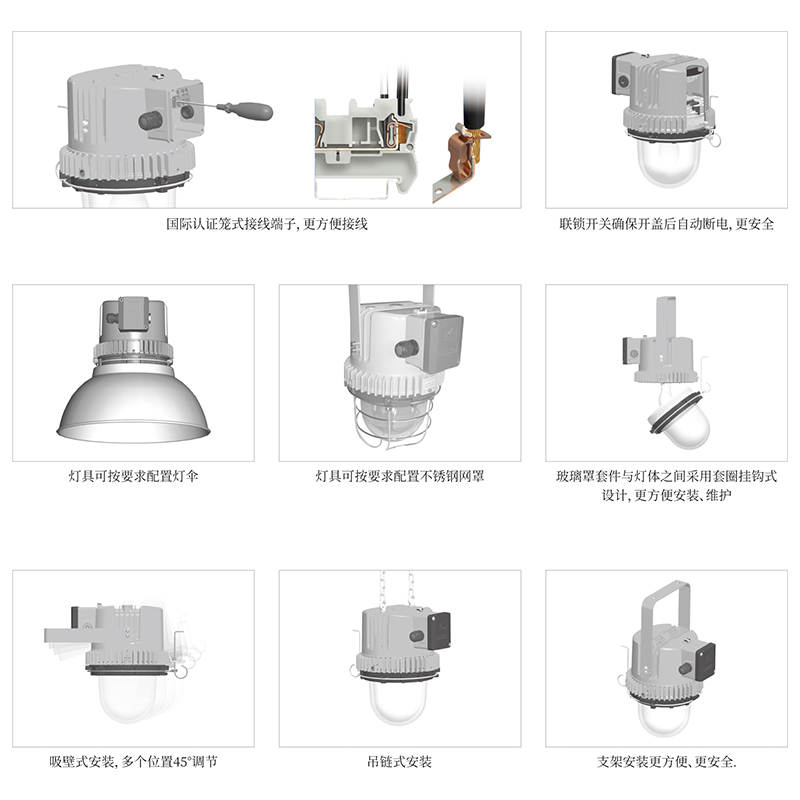

Prodcuts Features:

● The highest class of flameproof is up to IIC.
● The four patented technologies were obtained.
● It is convenient to be mounted and maintained.
● The degree of protection is up to IP66.
● International IECEx Approval, Europe union ATEX Approval.

Product Parameter

Product type:

Explosion-proof light fittings

Certification:

CCC IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2D/Db/zone 21

Min.ambient temperature:

-40℃

Max.ambient temperature:

+55℃

Degree of protection:

IP66

Rated voltage:

220V AC   50Hz
220V AC, 230V AC, 240V AC    50Hz, 60Hz

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification:

    China: CNEx14.0591 Ex mark: Ex de II C T4/T5/T6 Gb DIP A21 TA, T4/T5/T6

    IECEx: IECEx CQM13.0025X Ex mark: Ex d e II C T4/T5/T6 Gb Ex tb IIIC T130°C/T95°C/T80°C Db

    ATEX:TUV14 ATEX 7580X Ex mark: II 2 GD Ex d e II C T4/T5/T6 Gb Ex tb IIIC T130°C/T95°C/T80°C Db

    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient temperature use: -20℃ to+40℃/+55℃
    -40℃ to+40℃/+55℃
    Degree of protection: IP66
    Rated voltage: 220V AC 50Hz
    220V AC、230V AC、240V AC 50Hz、60Hz
    Terminal: L1, N cage type terminal 2-2.5mm² , PE terminal: 2×10mm²
    Cable entry: Moulded plastic 1×M25×1.5, Outside diameter: Φ8-17mm
    Moulded plastic 1×M25×1.5 stopping plug
