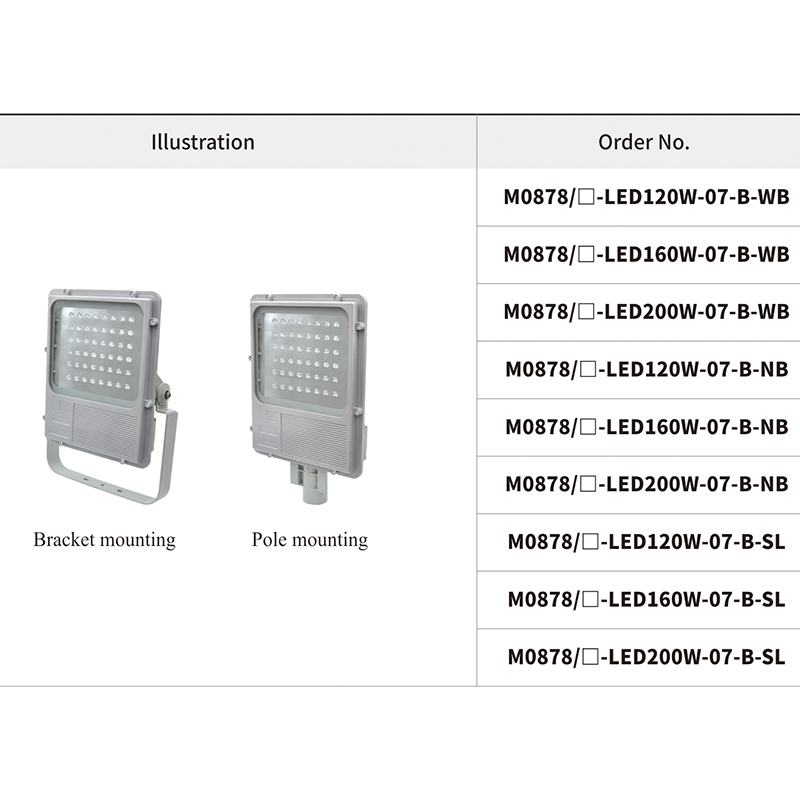

● Avaialbe in: bracket mounting or pole mounting
● Long life and maintenance-free, with service life up to 50,000 hours.
● Good electromagnetic compatibility and it does not cause any interference to the system power grid.
● No voltage fluctuation, and can be working in the voltage range of 110 ~ 277V AC.
● Good performance of vibration due to the LED is the solid-state light source.
● It is convenient to be mounted and maintained.
● Degree of protection is up to IP 66.
|
Product type： |
Industrial floodlight light fittings LED ( wide beam, narrow beam, street light ) |
|
Certification： |
CCC CE |
|
Min.ambient temperature： |
-40℃ |
|
Max.ambient temperature： |
+55℃ |
|
Corrosion-proof mark： |
WF2 |
|
Degree of protection： |
IP66 |
|
Rated voltage： |
110V~277V AC 50/60Hz |
|
Light source： |
LED |
|
Colour temperature： |
5700K |
| Certification： |
China: CCC
European Union: CE
|
| Degree of protection： | IP66 |
| Ambient temperature： | -40°C≤Ta ≤+55°C |
| Corrosion-proof mark： | WF2 |
| Rated voltage： | 110V~277V AC 50/60Hz |
| Light source： | LED |
| Colour temperature： | 5700K |
| Power factor： | ≥0.95 |
| Terminal： | L1, N terminal 0.75×1~2.5mm², PE terminal: 2×2.5~6mm² |
| Cable entry： | (Standard configuration)Moulded plastic 1×M25×1.5, Outside diameter: Φ8-17mm Moulded plastic 1×M25×1.5 stopping plug |
 D623
|
Chain type accessories(500mm) For M8 lifting eye bolt, the material is high quality steel with galvanization on surface |
 D8723/1
|
Bracket of vertical pole |
 M0930
|
Code：01 Single lamp equipped with one fuse code：02 Double lamps equipped with two fuses |

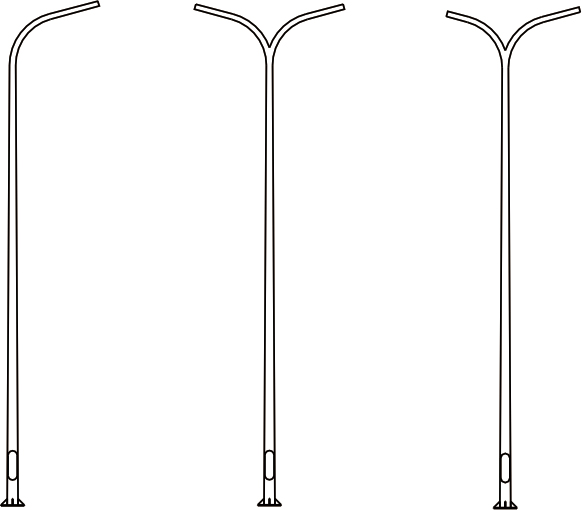

 AH,BH,CH
|
AH:Lamp pole of single arm
BH:Lamp pole of double arms with equal length CH:Lamp pole of double arms with non-equal length |
CZ Electric Co., Ltd was established in 1990, is a M0878 Industrial floodlight light fittings LED ( wide beam, narrow beam, street light ) suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
