Product type： |
Industrial full plastic LED linear light fittings |
|
Certification： |
CCC CE |
|
Min.ambient temperature： |
-40℃ |
|
Max.ambient temperature： |
+55℃ |
|
Corrosion-proof mark： |
WF2 |
|
Degree of protection： |
IP66 ( IP64 with breather CZ0527 ) |
|
Rated voltage： |
AC100 ～ 250V |
|
Color temperature： |
5700K |
|
Color rendering index： |
Ra≥80 |
|
Power factor： |
λ＞0.95 |
|
Material of enclosure： |
Anti-ultraviolet polycarbonate（PC) |
| Certification： |
China: CCC
European Union: CE
|
| Degree of protection: | IP66 ( IP64 with breather CZ0527 ) |
| Ambient temperature： | -40℃≤Ta≤+55℃ |
| Corrosion-proof mark： | WF2 |
| Rated voltage： | AC100 ～ 250V |
| Color temperature： | 5700K |
| Color rendering index： | Ra≥80 |
| Power factor： | λ＞0.95 |
| Terminals: | L, N, PE, each terminal 0.75-2.5mm² |
| Cable entry： | Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm Moulded plastic 2×M25×1.5 stopping plugs |
| Material of enclosure: | Anti-ultraviolet polycarbonate（PC) |
 D622
|
Accessories for pendant type |
 D623
|
Accessories for chain type |
 J200、J200/304;J300、J300/304;J400、J400/304
|
Accessories for clamp type M8 bolt mounting J200：G1 1/4"Φ42mm Steel J200/304：G1 1/4"Φ42mm Stainless steel J300：G1 1/2"Φ48mm Steel J300/304：G1 1/2"Φ48mm Stainless steel J400：G2"Φ60mm Steel J400/304：G2"Φ60mm Stainless steel |
 D621、D621/304
|
Support for ceiling type Steel、Stainless steel |
 D8738
|
Adjustable mounting bracket |
 D8709、D8710、D8711
|

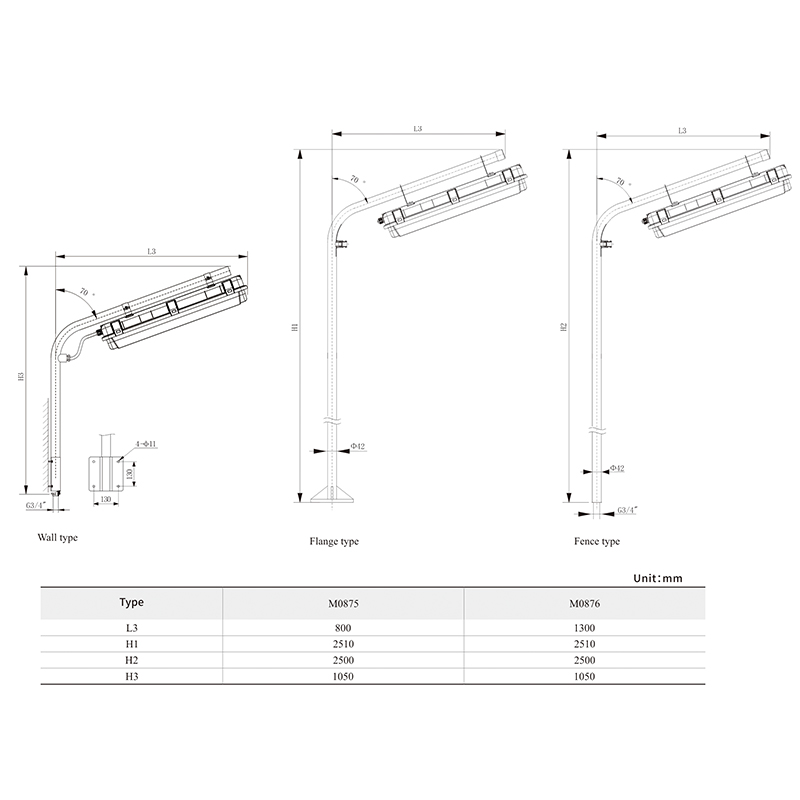

Lamp pole of wall type: D8709/1A Used for M0875 LED linear light fittings D8709/2A Used for M0876 LED linear light fittings Lamp pole of fence type: D8710/1A Used for M0875 LED linear light fittings D8710/2A Used for M0876 LED linear light fittings Lamp pole of flange type: D8711/1A Used for M0875 LED linear light fittings D8711/2A Used for M0876 LED linear light fittings |
 CZ0527 2515 e001
|
Increased safety breathing, drainage valve |
 CZ1718/11
|
LED light source module CZ1718/11-LED30W1: Without diffuser Power: 30W / 4268 lm / 5700K CZ1718/11-LED30W2 With diffuser Power: 30W / 3719 lm / 5700K |
 CZ1718/57-2×LED30W
|
Power supply module Power: 2×30W, Used for 2×LED30W linear light fittings AC100~250V |
 CZ1618/58-2×LED30W
|
Normal power: 2×30W, emergency power: 2×10W, Used for 2×LED30W emergency LED linear light fittings AC100~250V |
 CZ0819/B-4.5Ah 6.0V-33/62
CZ0819/B-4.5Ah 7.2V |
Battery module |
 CZ0802/1
|
Emergency indicator module Three colors for LED: red, yellow, green |
 D8714/2-M25
|
Metal earthing nut 2-M25×1.5 |
