Prodcuts Features:
● Combined enclosure.● Wiring from various directions.
● Metal cable glands may be selected.
● IECEx International Approval, ATEX European union certification.
Product type: |

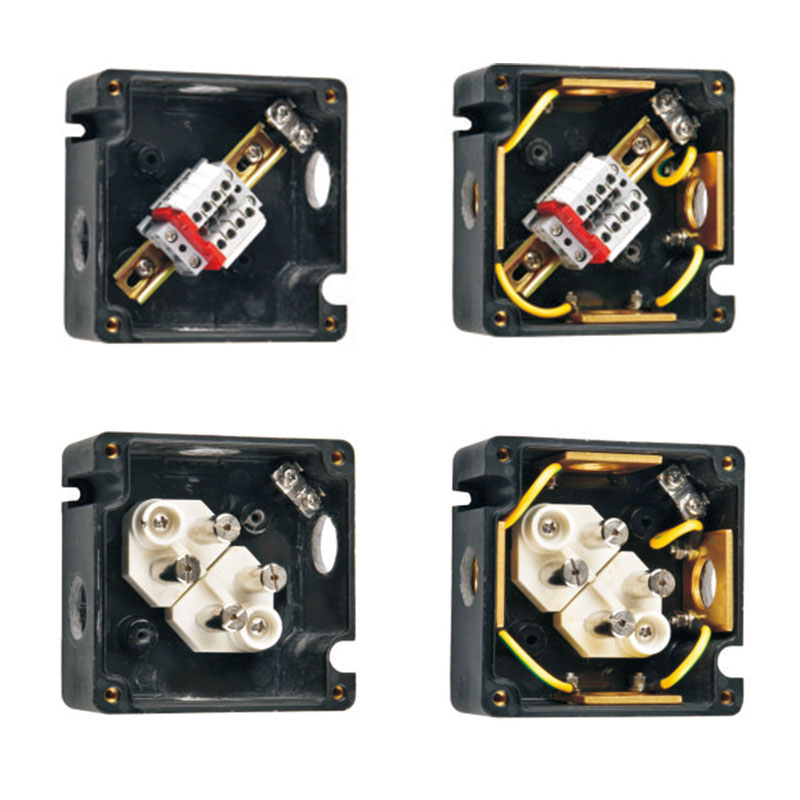

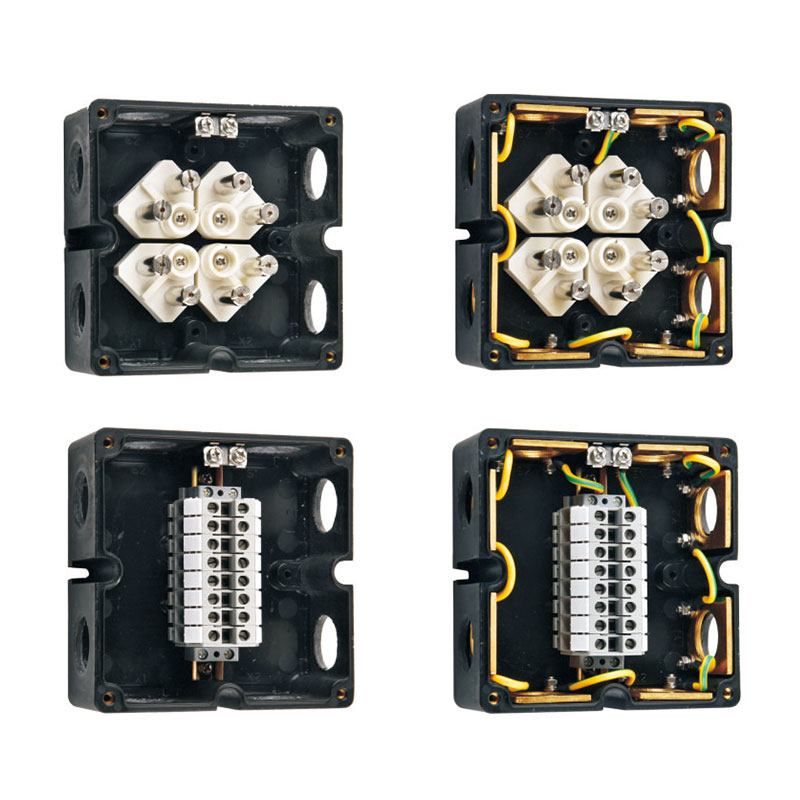

Full plastic Explosion-proof Terminal Boxes |
Certification: |
CCC IECEX ATEX |
Application range (zones): |
1G/Ga/zone 0;2G/Gb/zone 1;2D/Db/zone 20 |
Min.ambient temperature: |
-55℃ |
Max.ambient temperature: |
+55℃ |
Degree of protection: |
IP66/IP65 |
Rated voltage/current: |
max 1000V |
Rated current: |
max 630A |
Material of enclosure: |
GRP(anti-static glass fibre reinforced polyester SMC) |
Certification: |
China: CE 18.5062X Ex mark: Ex eb ⅡC T6/T5/T4 Gb Ex ia/ib ⅡC T6/T5/T4 Ga/Gb Ex tD A21 IP66 T80℃/T95℃/T130℃
IECEx: IECEx CML 17.0044X Ex mark: Ex eb ⅡC T6/T5/T4 Gb Ex ia/ib ⅡC T6/T5/T4 Ga/Gb Ex tb ⅢC T80℃/T95℃/T130℃ Db
ATEX: CML 17ATEX3104X Ex mark: Ⅱ2G Ex eb ⅡC T6/T5/T4 Gb Ex ia/ib ⅡC T6/T5/T4 Ga/Gb Ⅱ2D Ex tb ⅢC T80℃/T95℃/T130℃ Db |
Intended use: | Can be used in zone 0,zone 1 and zone 2 Can be used in zone 20,zone 21 and zone 22 |
Ambient temperature: | -40℃≤Ta≤+40℃/+55℃ -55℃≤Ta≤+40℃/+55℃ |
Degree of protection: | IP66/IP65 |
Rated voltage/current: | max 1000V |
Rated current: | max 630A |
Material of enclosure: | GRP (anti-static glass fibre reinforced polyester SMC) |
Plastic removable plate
278×121mm ( L×W ) Order No.:CZ8000-8036/1
|
SS304 removable plate 278×121mm ( L×W )
Order No.:CZ8000-8036/3-40
|
||
SS304 removable plate
186×121mm ( L×W ) Order No.:CZ8000-8036/4-40
|
Used for connecting for box
67×50mm( L×W ) Order No.:CZ8000-8004
|
||
Used for connecting for box
186×121mm( L×W ) Order No.:CZ8000-8005
|
Used for connecting for box
272×121mm( L×W ) Order No.:CZ8000-8006
|
||
Earthing bolt M6×38mm
Order No.:CZ8000-4036/6
|
Earthing bolt M10×55mm
CZ8000-4036/10
|
||
3~8mm brass plate is available on request and can be threaded.
8018
|
external fixing feet
8017
|
||
Hinges
Package/ ( hinges 2pcs and padlock 1pcs ) Order No.:CZ8000-8046/01
|
CZ Electric Co., Ltd was established in 1990, is a CZ1220 Full plastic Explosion-proof Terminal Boxes suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
Founded in 1990
More than 100 international
explosion-proof certifications
Five production modules
More than 120
patents
More than 50 countries
and regions around the world
CZ1220e Full plastic Explosion-proof Terminal Boxes (cable end box)
