Prodcuts Features:
● The design of integration is used.● It is convenient to be mounted and maintained.
● The degree of protection is up to Ip66.
Product type: |
Explosion-proof street light fittings |
Certification: |
CCC |
Application range (zones): |
Gc/zone 2;A21/zone 21 |
Min.ambient temperature: |
-40℃ |
Max.ambient temperature: |
+55℃ |
Degree of protection: |
IP66 |
Rated voltage: |
220V AC、230V AC、240V AC 50Hz、60Hz |
Certification: | China: CNEx16.0845 Ex mark: Ex nR II C T3 Gc Ex tD A21 IP66 T195°C (The lamp cap of Ex street light) |
Intended use: | Can be used in zone 2 Can be used in zone 21 and zone 22 |
Ambient temperature use: | -40°C≤Ta≤+55°C |
Degree of protection: | IP66 |
Rated voltage: | 220V AC、230V AC、240V AC 50Hz、60Hz |
Terminal: | L1, N terminal 2×1.5-4mm², PE terminal 2×10mm² |
HQI-T 250/D、HQI-BT 400/D
|
Metal halide lamp bulb-J |
NAV-T 150、NAV-T 250、NAV-T 400
|
High pressure sodium vapor lamp bulb-N |
CZ0930
|
Code:10,11 Single lamp equipped with one fuse code:20,21 Double lamps equipped with two fuses |

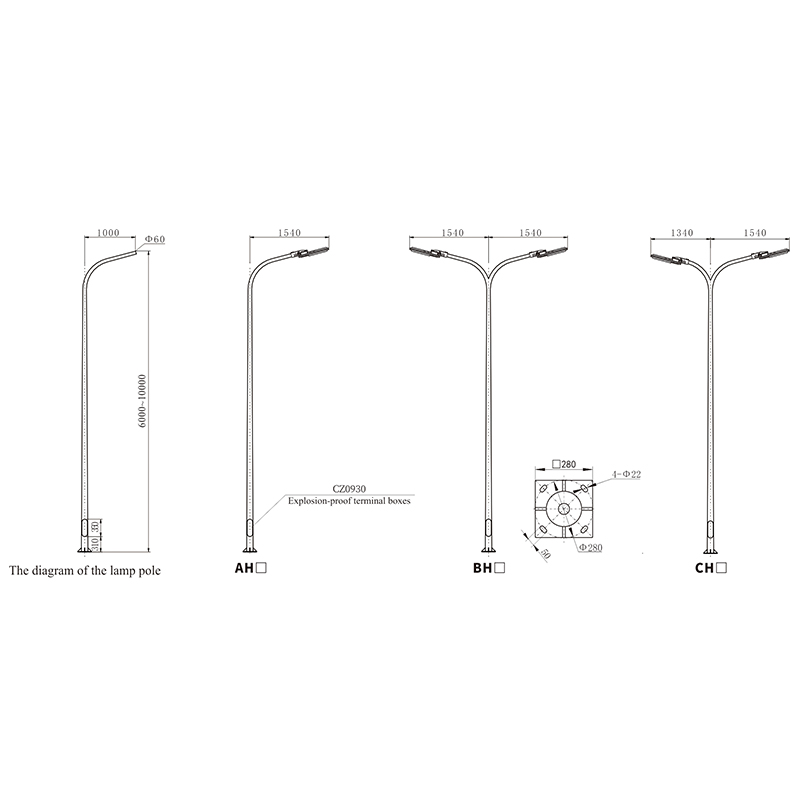

AH,BH,CH
|
AH:Lamp pole of single arm BH:Lamp pole of double arms with equal length CH:Lamp pole of double arms with non-equal length |
