CZ6365 Explosion-proof（emergency）LED tubular light fittings

Prodcuts Features:

● It is long life and maintenance-free which the service life is up to 50000 hours.

● There is a feature of good electromagnetic compatibility and it does not cause interference to the system power grid.

● It is not influenced by the voltage fluctuations and can be operated in the wide voltage range.

● There is a good performance of vibration due to the LED is the solid-state light source.

● It is convenient to be mounted and maintained.

● The degree of protection is up to IP66 / IP67.

● International IECEx Approval, Europe union ATEX Approval.

● Light efficiency ≥ 135lm/w（Meet China's first-class energy efficiency standards）.

Product Parameter

Product type:	Full plastic explosion-proof LED linear light fittings (Pole Mounting)
Certification:	China IECEX ATEX
Application range (zones):	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature:	T6：-60℃
Max.ambient temperature:	T6：+55℃
Degree of protection:	IP66/IP67
Rated voltage:	100～250V AC 50/60Hz，127～250V DC
Color temperature:	Standard 5000K,（Optional 3000K,4000K,6500K）
Color rendering index:	Ra≥80
Material of enclosure:	316L stainless steel PC Polycarbonate（transparent lampshade）

Certification：	China:Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db IECEx: Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db ATEX: II 2GD Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature：	T6 at -40°C≤Ta≤+55°C （Emergency） T6 at -60°C≤Ta≤+55°C
Degree of protection:	IP66 / IP67
Rated voltage：	100～250V AC 50/60Hz，127～250V DC
Color temperature:	Standard 5000K, （Optional 3000K,4000K,6500K）
Color rendering index:	Ra≥80
Power factor:	λ＞0.95
Terminals:	L1, L2, N terminal 2.5mm², PE terminal 2×10mm²
Cable entry:	1-M20×1.5 , outside diameter of cable: Φ8-12mm（CZ1725/1A） 1-M20×1.5 , stopping plugs（CZ1725/3A）
Emergency illuminating time:	＞180 min
Battery discharge ambient temperature:	-20℃ ~ +60℃

About CZ

CZ Electric Co., Ltd was established in 1990, is a CZ6365 Explosion-proof（emergency）LED tubular light fittings suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.

0

Founded in 1990
0+

More than 100 international
explosion-proof certifications
0

Five production modules
0+

More than 120
patents
0+

More than 50 countries
and regions around the world

Certification

High-tech Enterprises
ISO9001 ISO14001 OHSAS18001
ATEX EU explosion-proof quality management system certification
IECEx
Intellectual Property Management System Certificate
Safety Production Standardized Enterprise Level 3
Zhejiang Manufacturing Qualification Certification

Honor

Famous Trademark in Zhejiang Province
Patent Demonstration Enterprise Bronze Medal
People's Forum
Zhejiang High-tech Enterprise R&D Center
Charity Star Award

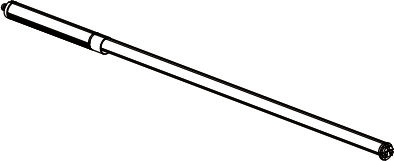

“PHILIPS”T8 LED tubes	Order No.：600mm 8W 865 HO 800lm T8 8W LED tube, Voltage 220～240V AC 50～60Hz, Luminous flux 800 Lm, Color temperature 6500K, Lifetime 40000 hours	PHILIPS”T8 LED tubes	Order No.：1200mm 18W 865 HO 2100lm T8 18W LED tube, Voltage 220～240V AC 50～60Hz, Luminous flux 2100 Lm, Color temperature 6500K,Lifetime 40000 hours
30W LED Light source module	Order No.：CZ6365-12-LED30W5 Voltage 100～250V AC 50/60Hz, 127～250V DC,Luminous flux 5400 Lm, Color temperature 5000K, Lifetime 50000 hours	40W LED Light source module	Order No.：CZ6365-13-LED40W5 Voltage 100～250V AC 50/60Hz, 127～250V DC, Luminous flux 7200 Lm, Color temperature 5000K, Lifetime 50000 hours
50W LED Light source module	Order No.：CZ6365-14-LED50W5 Voltage 100～250V AC 50/60Hz, 127～250V DC, Luminous flux 8900 Lm, Color temperature 5000K, Lifetime 50000 hours	30W LED emergency Light source module	Order No.：CZ6365-13-LED30W5-M Voltage 100～250V AC 50/60Hz,127～250V DC, Normal illumination power/luminous flux 30W/5000 Lm Emergency illumination power/luminous flux 8W/1200 Lm Color temperature 5000K, Lifetime 50000 hours
40W LED emergency Light source module	Order No.：CZ6365-14-LED40W5-M Voltage 100～250V AC 50/60Hz,127～250V DC, Normal illumination power/luminous flux 40W/7400 Lm Emergency illumination power/luminous flux 8W/1360 Lm Color temperature 5000K, Lifetime 50000 hours	U type accessories stainless steel 316	Order No.：U633 Specifications：M6×33 A=41mm L=53mm Order No.：U642 Specifications：M6×42 A=52mm L=62mm Order No.：U633 Specifications：M6×48 A=56mm L=68mm
