CZ0865/0866 Full plastic explosion-proof fluorescent light fittings(Pole Mounting)

Prodcuts Features:

● Full plastic explosion-proof fluorescent light fittings mounting ways: Ceiling type, chain type, pendant type, wall type and clamp type.

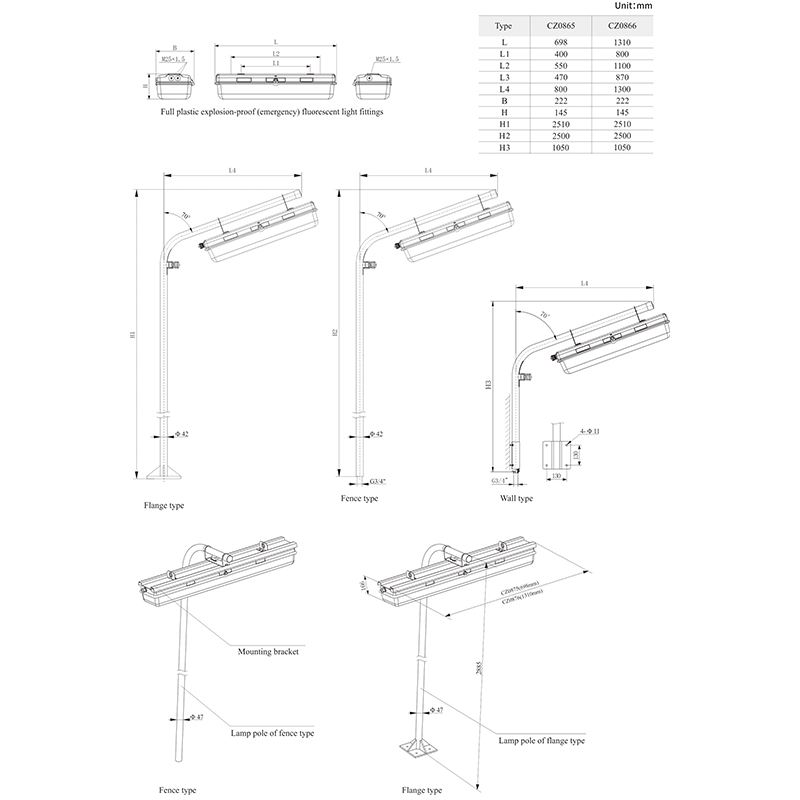

● Full plastic explosion-proof fluorescent light fittings (polemounting) mounting ways:Platform fence type, platform flange type, wall type.
● Standard two-supply circuit design and EOL switching off function design when the life of the lamp tube is end;
● With trichromatic lamp tubes inside to have high luminous efficiency and long life.
● With interlock device, the transparent parts and enclosure can not energize to work to ensure safe use before completely sealing.
● The explosion-proof ballast is equipped with the protective functions of open circuit, short circuit and abnormity of lamp tube;
● The structural design is never distortion and its protection degree is up to IP66.
● International IECEx Approval, Europe union ATEX Approval.

Product Parameter

Product type：	Full plastic explosion-proof fluorescent light fittings(Pole Mounting)
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	T83℃：-25℃ T98℃：-25℃
Max.ambient temperature：	T83℃：+40℃ T98℃：+55℃
Degree of protection：	IP66
Rated voltage：	110 ～ 240V AC (±10%) 50/60Hz
Energy efficiency index：	EEI=A2
Power factor：	λ＞0.95

Certification：	China: CE16.5030X Ex mark: Ex d e q II C T4 Gb Ex tD A21 IP66 T83°C/T98°C(Product without fuse）Ex d e mb q II C T4 Gb Ex tD A21 IP66 T83°C/T98°C (Product with fuse） IECEx: CQM 10.0012 Ex mark:Ex db e q II C T4 Gb Ex tb IIIC T83°C/T98°C Db (Product without fuse）Ex db e mb q II C T4 Gb Ex tb IIIC T83°C/T98°C Db (Product with fuse） ATEX: (DNV) Presafe 16 ATEX 8178X Ex mark: II 2GD Ex db e q II C T4 Gb Ex tb IIIC T83°C/T98°C Db (Product without fuse） II 2GD Ex db e mb q II C T4 Gb Ex tb IIIC T83°C/T98°C Db (Product with fuse）
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature:	-25℃≤Ta≤+40℃ ( T83℃ ) -25℃≤Ta≤+55℃ ( T98℃ )
Degree of protection:	IP66
Rated voltage：	110 ~ 240V AC (±10%) 50/60Hz
Power factor：	λ＞0.98
Energy efficiency index:	EEI=A2
Terminals:	L、N、PE, each terminal 2×1.5-10mm²
Cable entry：	Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm Moulded plastic 2×M25×1.5 stopping plugs Pole mounting:Moulded plastic 1×M25×1.5 cable gland,Outside diameter of cable: Φ8-17mm

About CZ

CZ Electric Co., Ltd was established in 1990, is a CZ0865/0866 Full plastic explosion-proof fluorescent light fittings(Pole Mounting) suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.

0

Founded in 1990
0+

More than 100 international
explosion-proof certifications
0

Five production modules
0+

More than 120
patents
0+

More than 50 countries
and regions around the world

Certification

High-tech Enterprises
ISO9001 ISO14001 OHSAS18001
ATEX EU explosion-proof quality management system certification
IECEx
Intellectual Property Management System Certificate
Safety Production Standardized Enterprise Level 3
Zhejiang Manufacturing Qualification Certification

Honor

Famous Trademark in Zhejiang Province
Patent Demonstration Enterprise Bronze Medal
People's Forum
Zhejiang High-tech Enterprise R&D Center
Charity Star Award

	Accessories for pendant type D622		Accessories for chain type D623
	Accessories for clamp type M8 bolt mounting J200：G1 1/4"Φ42mm Steel J200/304：G1 1/4"Φ42mm Stainless steel J300：G1 1/2"Φ48mm Steel J300/304：G1 1/2"Φ48mm Stainless steel J400：G2"Φ60mm Steel J400/304：G2"Φ60mm Stainless steel J200、J200/304;J300、J300/304;J400、J400/304		Support for ceiling type Steel、Stainless steel D621、D621/304

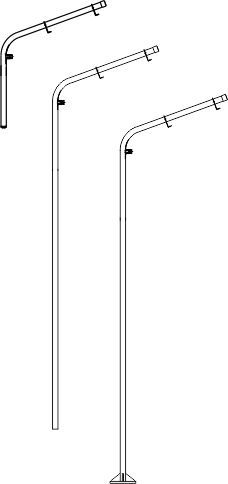

	Adjustable mounting bracket D8738		Lamp pole of wall type: D8709/1A Used for CZ0865 LED linear light fittings D8709/2A Used for CZ0866 LED linear light fittings Lamp pole of fence type: D8710/1A Used for CZ0865 LED linear light fittings D8710/2A Used for CZ0866 LED linear light fittings Lamp pole of flange type: D8711/1A Used for CZ0865 LED linear light fittings D8711/2A Used for CZ0866 LED linear light fittings D8709、D8710、D8711
	Wall mounting bracket of pole type Use for pole mounting linear light fittings D8739		Lamp pole of fence type: D8740 Use for pole mounting linear light fittings Lamp pole of flange type: D8741 Use for pole mounting linear light fittings D8740、D8741
	Lamp pole of fence type: D8705 Lamp pole of flange type: D8706 D8705、D8706		Mounting bracket D8742/1 Used for CZ0865 LED linear light fittings D8742/2 Used for CZ0866 LED linear light fittings D8742/1、D8742/2
	Metal earthing nut 2-M25×1.5 D8714/2-M25		Explosion-proof fuse module CZ0804/T0.8A CZ0804/T1.25A CZ0804/T6.3A CZ0804
	Explosion-proof isolation switch module CZ0207-1		Explosion-proof lampholder CZ0403/G5:Explosion-roof G5 lampholder, used for T5 fluorescent lamp tube of energy saving type CZ0403/G13:Explosion-roof G13 lampholder, used for T8 fluorescent lamp tube of energy saving type CZ0403/G5 CZ0403/G13
	With conductor terminal board 305/21: 1×LED 30W 305/22：2×LED 30W 3P terminal,Conductor 3×2.5mm² max16A, L1+N+PE 305/31: 1×LED 30W 305/32：2×LED 30W 4P terminal,Conductor 4×2.5mm² max16A, L1+L2+N+PE 305		Explosion-proof ballast module CZ0818/2×14W-1 Power: 2×14W, used for T5 energy saving type fluorescent light fittings CZ0818/2×28W-1 Power: 2×28W, used for T5 energy saving type fluorescent light fittings CZ0818/2×18W-1 Power: 2×18W, used for T8 energy saving type fluorescent light fittings CZ0818/2×36W-1 Power: 2×36W, used for T8 energy saving type fluorescent light fittings CZ0818/2×14W-1 CZ0818/2×28W-1 CZ0818/2×18W-1 CZ0818/2×36W-1
	Explosion-proof emergency indicator module Three colors for LED: red, yellow, green CZ0802-1		Explosion-proof battery module CZ0819/4.5Ah 6V CZ0819/4.5Ah 7.2V
	M8/SW13 Sleeve spanner Used for CZ0865、CZ0866， Material: Fine quality steel with galvanized surface D601
