Custom MS0254 Industrial plugs and sockets(switchgear with mechanical interlock) Suppliers, Company

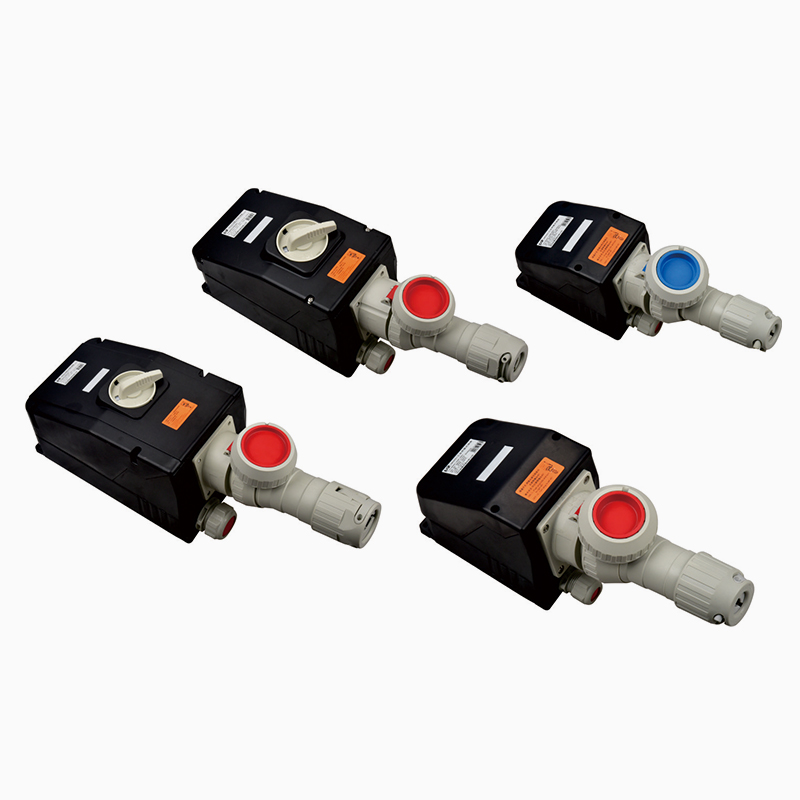

MS0254 Industrial plugs and sockets(switchgear with mechanical interlock)

Prodcuts Features:

● Self-cleaning inserting sleeve, low transmission resistance.
● Protective covers ensure high degree of protection.
● Small force of inserting and pulling.
● The wiring space is large enough .
● CCC, CE certification.

Product Parameter

Product type：	Industrial plugs and sockets(switchgear with mechanical interlock)
Certification：	CCC CE
Corrosion-proof mark：	WF2
Min.ambient temperature：	-55℃
Max.ambient temperature：	+55℃
Degree of protection：	IP66
Rated voltage：	max 690V AC 50/60Hz
Rated current：	125A
Material of enclosure：	glass fibre reinforced polyester SMC polyamide

Certification：	China Ex mark: CCC European Union Ex mark:CE
Corrosion-proof mark：	WF2
Degree of protection：	IP66
Ambient temperature：	-55℃≤Ta≤+55℃
Rated current：	125A
Rated voltage:	max 690V AC 50/60Hz
Rated switch capacity：	AC-3 690V/125A
Aux. switch：	AC250V/5A
Terminals:	2×50mm² ( wall type socket ) 1×50mm² ( plug )
Aux. contact of wall type socket：	2×2.5mm²
Cable entry：	Wall type socket ( standard configure ) Moulded plastic 1×M63×1.5(cable outside diameter Φ27 ~ 48mm) Moulded plastic 1×M63×1.5 stopping plug Other certified cable glands can be used Plug: 4 poles, 5 poles ( cable outside diameter Φ20~ 57mm )
Material of enclosure:	glass fibre reinforced polyester SMC polyamide

About CZ

CZ Electric Co., Ltd was established in 1990, is a MS0254 Industrial plugs and sockets(switchgear with mechanical interlock) suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
