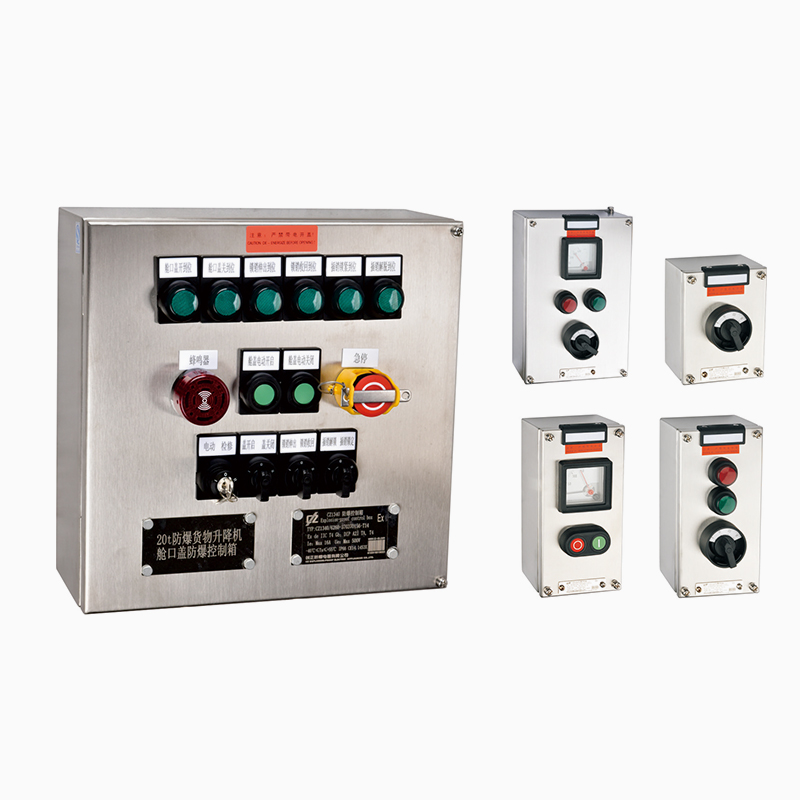

Prodcuts Features:
● Moulded plastic or metal cable glands can be selected.● Easy installation.
● High degree of protection IP66.
● CE Approval, CCC Approval
|
Certification： |
China Ex mark: CCC |
|
Ambient temperature： |
-55℃≤Ta≤+55℃ |
|
Degree of protection： |
IP66 |
|
Rated voltage： |
up to 690V |
|
Rated current： |
up to 180A |
|
Rated insulation voltage Ui(V)： |
500V |
|
Rated impact withstand voltage Uimp(kV)： |
6kV |
|
Category： |
AC-12, AC-15 DC-12 |
|
Component terminal： |
2×2.5mm² |
|
PE terminals： |
4mm² |
|
Material of enclosure： |
SS304 (On the surface of wire drawing processing) |
|
Material thickness： |
standard 1.5mm (2mm customized) |
|
Earthing： |
M6 |
|
Cable entry： |
2×M25, cable outside diameter: Φ8 ~ 17mm |
|

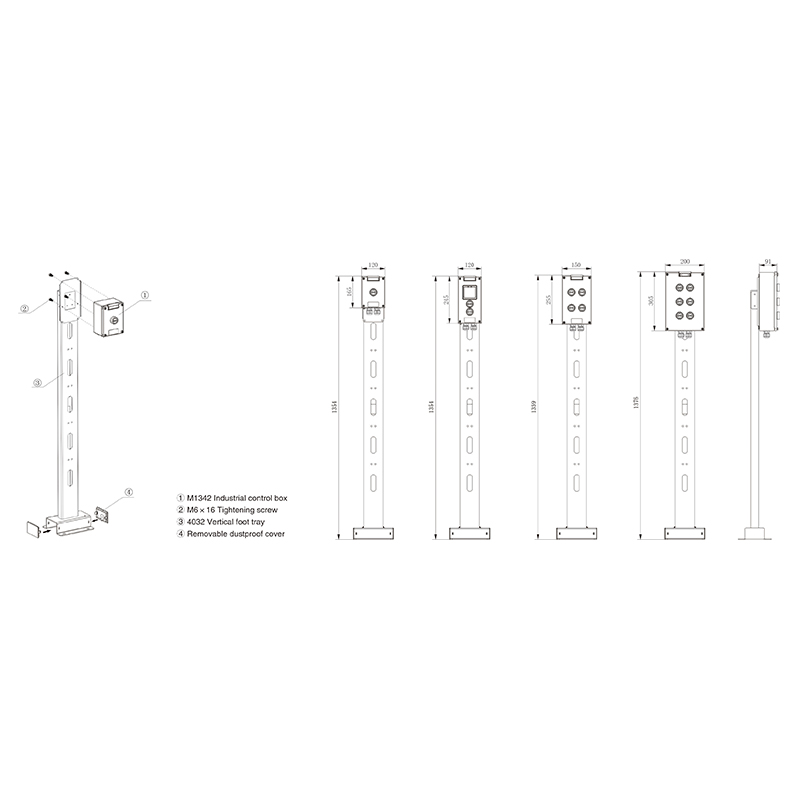

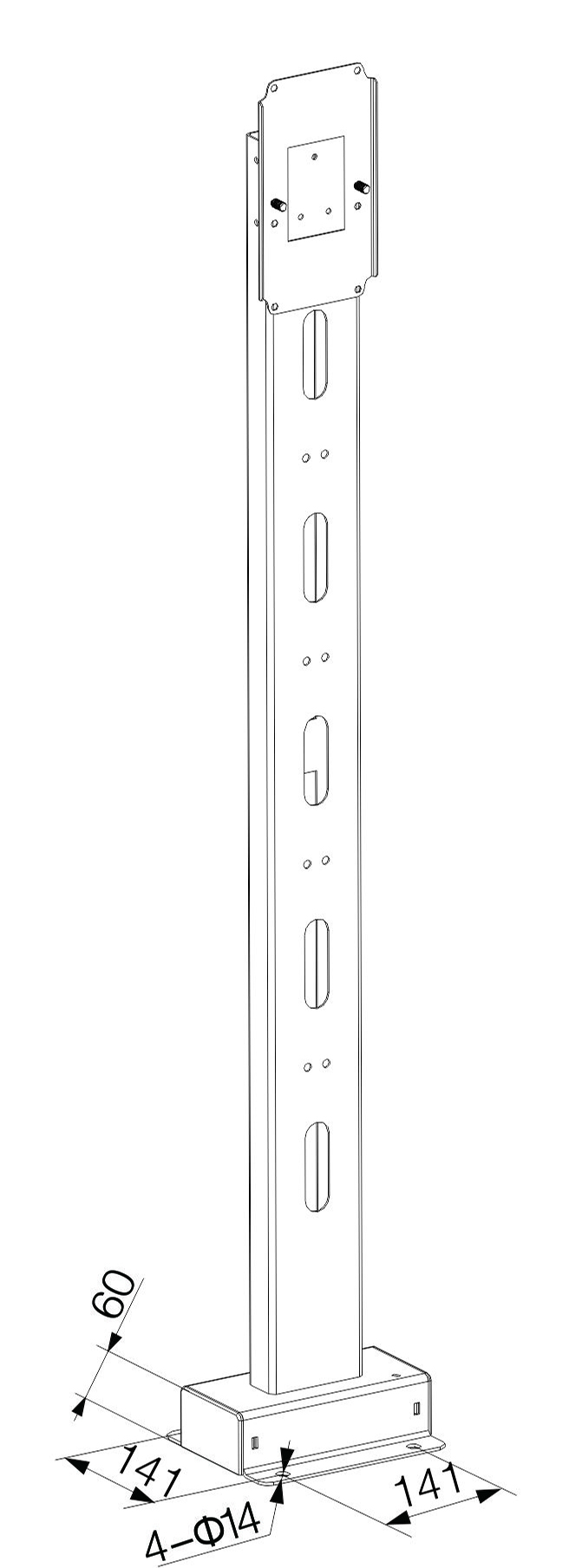

Mounting way： |
wall type、Vertical mounted |
