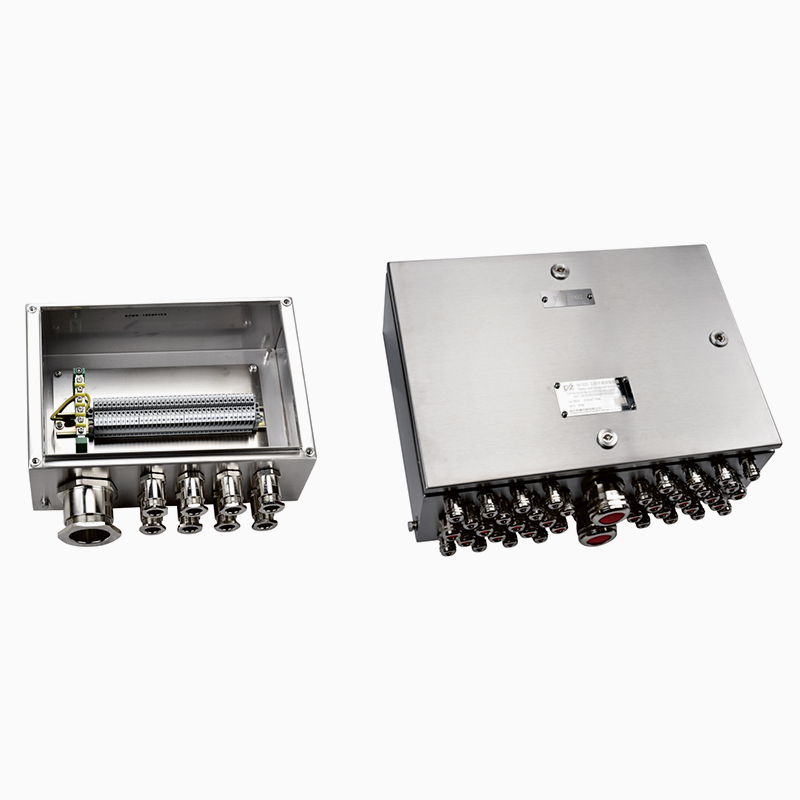

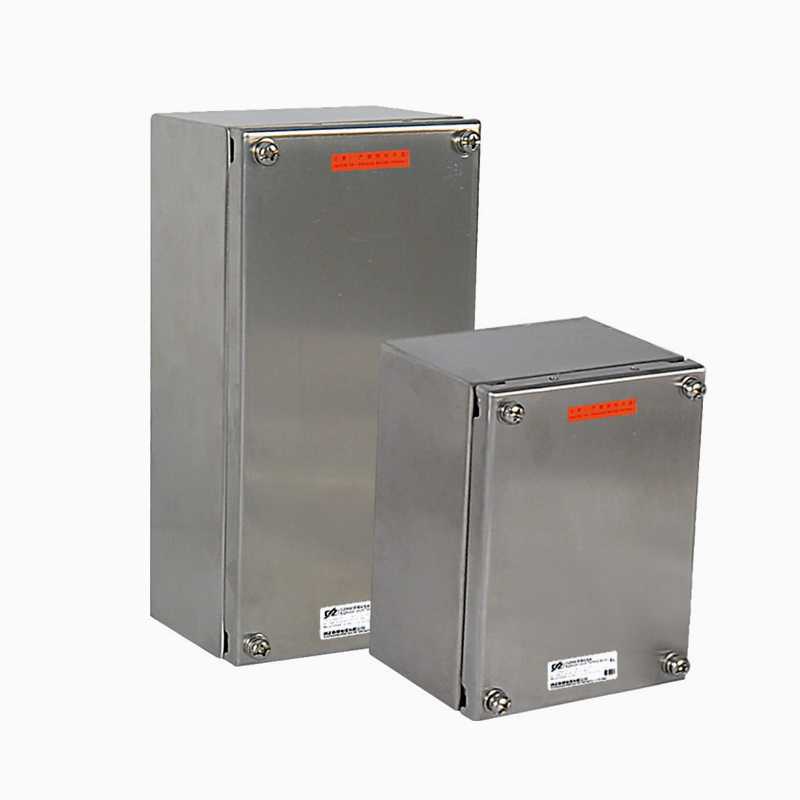

Prodcuts Features:
● More than one boxes can be combined.● Noa-standard six can ve custonmized .
● Degree of protection IP66.
● CCC&CE certification.
|
Certification： |
China Ex mark: CCC |
|
Corrosion-proof mark： |
WF2 |
|
Ambient temperature use： |
-55℃≤Ta≤+55℃ |
|
Degree of protection： |
IP66 |
|
Rated voltage/current： |
max 1000V |
|
Rated current： |
max 630A |
|
Rated insulation voltage Ui(V)： |
1000V |
|
Rated impact withstand voltage Uimp(kV)： |
6kV |
|
Overvoltage category： |
Ⅲ |
|
Pollution degree： |
3 |
|
Earthing： |
M6 |
|

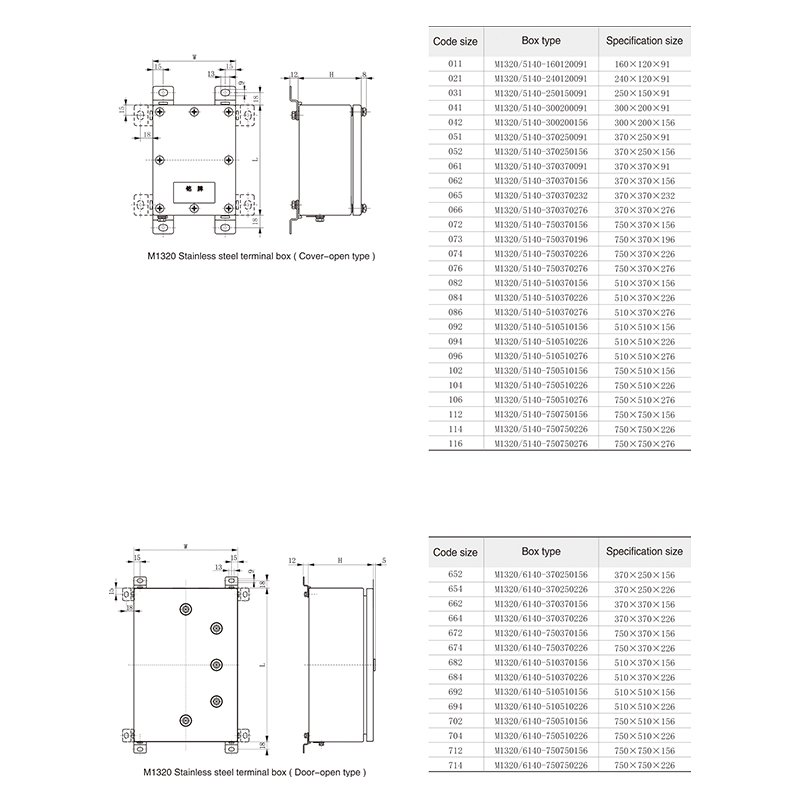

Box internal installation structure forms： |

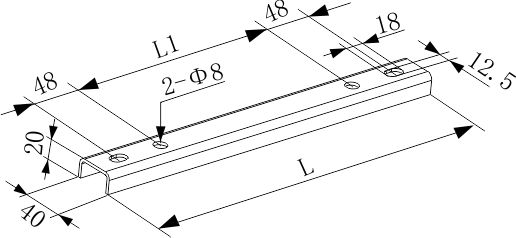

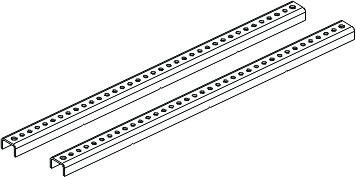

rail and brass mounting plate |
|
Box open structure forms： |
Open cover type and open door type |
|

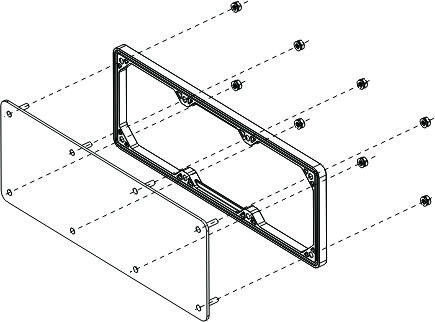

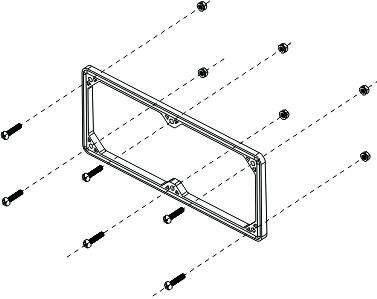

Remove plate： |
detachable removable plate 3mm |
|
Material Thickness： |
Standard 1.5mm (Other customized) |
|
Material： |
SS304 ( wire drawing processed ) |
