Custom M1390 125-180A Industrial safety switch Suppliers, Company

M1390 125-180A Industrial safety switch

Prodcuts Features:

● Switch is with interlock which is in the state of lock in, the switch is not turned on.
● Operation handle with padlock device.

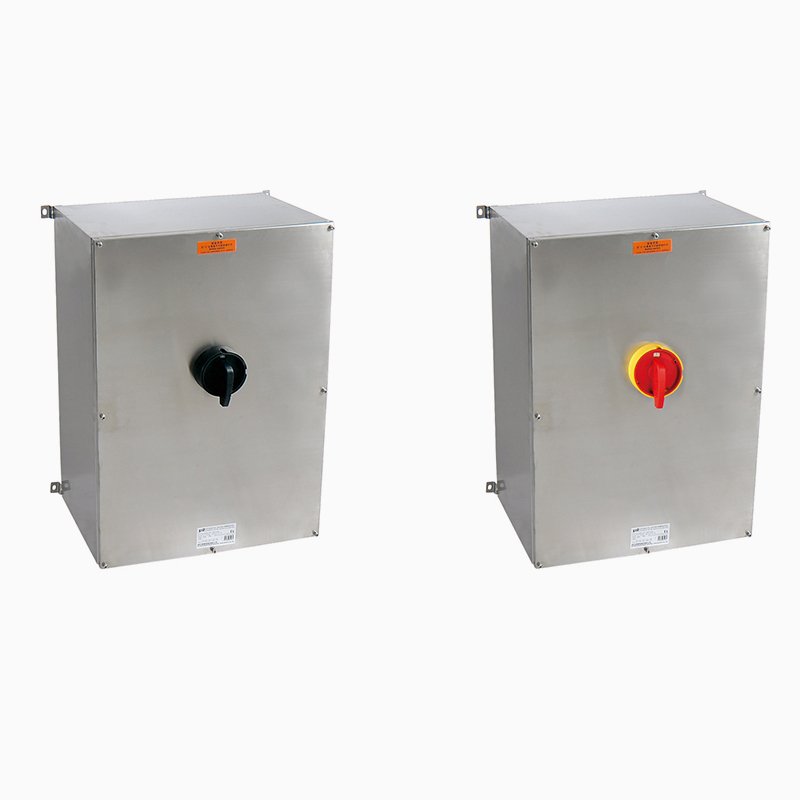

● Switch with black operation handle is standard type, and switch with red/yellow operation handle is emergency stop type.
● Degree of protection IP66
● CCC&CE certification.

Product Parameter

Product type：	125/180A Industrial safety switch
Certification：	CCC CE
Corrosion-proof mark：	WF2
Min.ambient temperature：	-55℃
Max.ambient temperature：	+55℃
Degree of protection：	IP66
Rated current：	Max to 180A
Material of enclosure：	304/316L stainless steel(On the surface of wire drawing processing)

Certification:	China Ex mark: CCC European Union Ex mark:CE
Corrosion-proof mark	WF2
Ambient temperature	-55℃≤Ta≤+55℃
Degree of protection	IP66
Rated current	Max to 180A
Terminal	125A 1×50/70mm² 180A 1×120mm²
Auxiliary terminal	2×4mm²
Utilization category	AC-23, AC-3
Capacity of switch	230V 180A 400V 180A 500V 180A 690V 125A
Rated insulation voltage (Ui)	800V
Rated impulse withstand voltage ( Uimp )	6kV
Rated short-time withstand current ( Icw )	10kA
Rated short-time marking capacity ( Icm )	17kA
Short-circuit protection of fuse	500V/250A
Protection characteristic of fuse	gG ( conformity to IEC/EN60269-1 )
Auxiliary contact:	( I/ON - Time delay 0/OFF - Advance ) 3 Poles: 1NO 6 Poles: 1NO + 1NC
Material of enclosure:	304/316L stainless steel(On the surface of wire drawing processing)

About CZ

CZ Electric Co., Ltd was established in 1990, is a M1390 125-180A Industrial safety switch suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
