Prodcuts Features:
● Circuit breakers, magnetic starters, big switches and other normal components can be mounted inside. Operating mechanism is available to mount externally to operate the internal components.● Normal measuring instruments can be mounted inside and can be observed and controled from the flame-proof window and flame-proof operating mechanism.
● Hinges are available to mount between the base and lid to get the lid opened to 100°
● Ambient temperature: -55℃/-20℃≤Ta≤40℃/+50℃+60℃
● Rated voltage: up to 1000V AC
● Rated current: up to 1250A
● Two or more flame-proof boxes can be combined with cable bushings CZ2000/2B to use

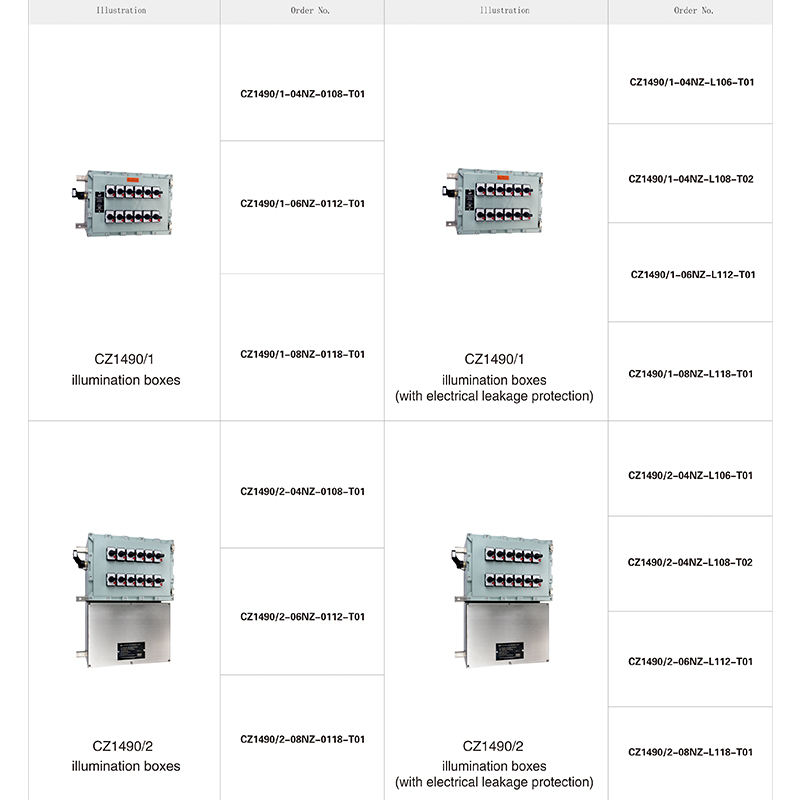

● CZ1490/1 Explosion-proof distribution box has flame-proof cable glands for direct entries
● CZ1490/2 Explosion-proof distribution box is combined with increased safety box with either terminal pillar or cable bushing for indirect entries.
● IECEx International Approval, ATEX European Approval
