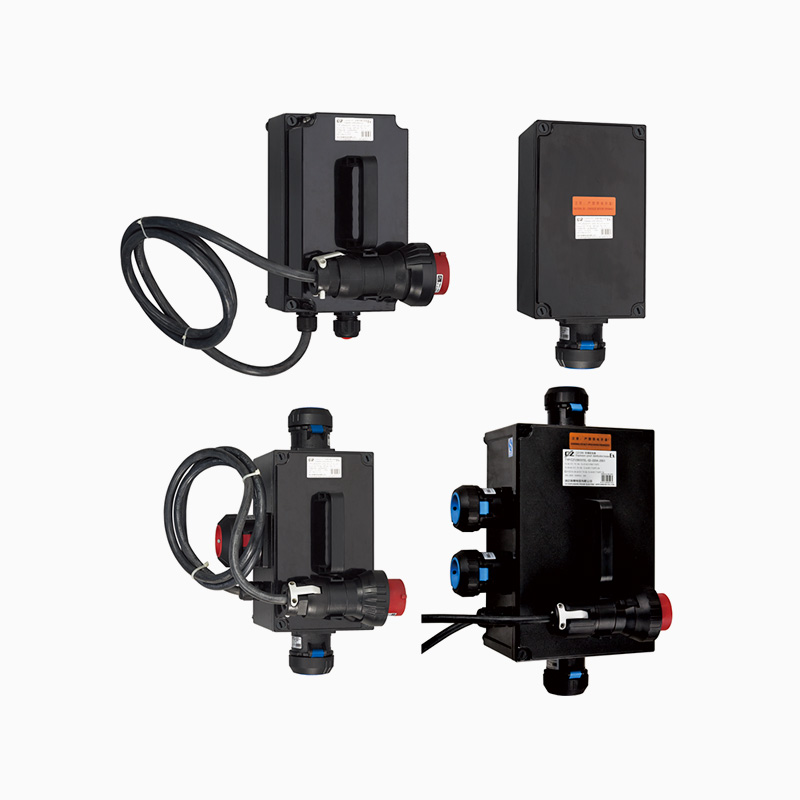

CZ1290 Explosion-proof distribution boxes ( socket with transformer )

Prodcuts Features:

● Wring is finished in the box.
● Product with CZ0804 fuse
● Portable explosion-proof plug with a transformer.
● Integrated socket with a transformer.
● IECEx International certification, ATEX European union certification.

Product Parameter

Product type：	Explosion-proof distribution boxes ( socket with transformer )
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	-40℃
Max.ambient temperature：	+55℃
Degree of protection：	IP66 IP65
Socket Rated current：	16A
Transformer：	Rated capacity: 100VA Primary voltage: AC 220/380V ( 110 ~ 500V ) Secondary voltage: AC 24, 42, 110, 220V
Frequency：	50/60Hz
Material of enclosure：	GRP (anti-static glass fibre reinforced polyester SMC)

Certification：	China: CE18.5062X Ex mark: Ex d eⅡC T5/T4 Gb Ex tD A21 IP66 T95℃/T130℃ IECEx: IECEx CML 17.0044X Ex mark: Ex db ebⅡC T5/T4 Gb Ex tb ⅢC T95℃/T130℃ Db ATEX: CML 17 ATEX 3104X Ex mark: Ⅱ2GD Ex db ebⅡC T5/T4 Gb Ex tb ⅢC T95℃/T130℃ Db
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature:	-40℃≤Ta≤+40℃/+55℃
Degree of protection:	IP66 / IP65
Socket Rated current：	16A
Transformer：	Rated capacity: 100VA Primary voltage: AC 220/380V ( 110 ~ 500V ) Secondary voltage: AC 24, 42, 110, 220V
Frequency：	50/60Hz
Cable entry:	1×M25, Cable outside diameter: Φ8-17mm
Material of enclosure:	GRP (anti-static glass fibre reinforced polyester SMC)
