CZ4000 Series explosion-proof operation head

Prodcuts Features:

● Many different operation heads are available.
● P1 Pushbutton operation heads/P2 double pushbutton operation heads, labels with different markings are optional
● P4□ (Φ37mm) /P5□ (Φ55mm) Mushroom operation heads
● P3E (Φ40mm) E-stop push-pulling operation heads (red/yellow)
● P6□ (Φ40mm) /P7□ (Φ55mm) (E-stop)Twist to release operation heads(black,red/yellow)
● Y2□ (E-stop) Key-releasing operation heads (red/yellow, red/black)
● Y3~Y8 Key switch operation heads (lock/spring return, key retractable/ key not retractable, general purpose key/ special key
● KB□ Switch operation heads Φ39mm (lock/spring return)
● S□ Switch operation heads Φ61.5mm (lock/spring return)
● H□ Switch operation heads Φ61.5mm specially for H switch modules
● S□, H□ Switch operation heads have padlock hole on different positions. Normal ones are in black, emergency ones are in red/yellow.
● V□6 Explosion-proof toggle switch operation head (black, red/yellow)
● L□ Operation heads of signal lamp (five colors)
● P□ Operation heads of signal lamp with button (five colors)
● DW Potentiometer operation heads
● Meters protective cover (M1 calotte/M2 calotte with label)
● B1 Blanking plug

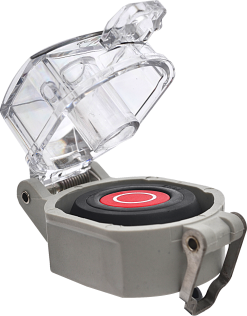

● Safety latches( board front rail mounting/panel mounting)
● Accessories (label, E-stop pushbutton yellow label, spanner)

Product Parameter

Product type:

Explosion-proof operation head

Certification:

CCC IECEX ATEX

Application range (zones):

2G/Gb/zone 1;2D/Db/zone 21

Min.ambient temperature:

-55℃

Max.ambient temperature:

+65℃

Degree of protection:

 IP66

Tighten torque:

2.8 ~ 3.4 N.m  (M30×1.5)

Material:

polyamide

  • Main technical data
  • Optional Ex components
  • Video
  • Accessorise
  • Download
  • Certification:
    China: CE14.5024U Ex mark: Ex eⅡC Gb Ex tD A21 IP66
    IECEx: IECEx CQM 15.0035U Ex mark: Ex ebⅡC Gb Ex tb ⅢC Db
    ATEX: Sira 15ATEX3333U Ex mark: Ⅱ2GD Ex ebⅡC Gb Ex tb ⅢC Db
    Intended use: Can be used in zone 1 and zone 2
    Can be used in zone 21 and zone 22
    Ambient and operating temperature: -55℃ ~ +65℃
    Degree of protection: IP66
    Tighten torque: 2.8 ~ 3.4 N.m (M30×1.5)
    Material: polyamide
    Comformity to low voltage electrical standards: IEC60947-5-1、EN60947-5-1
    IEC60947-5-5、EN60947-5-5
