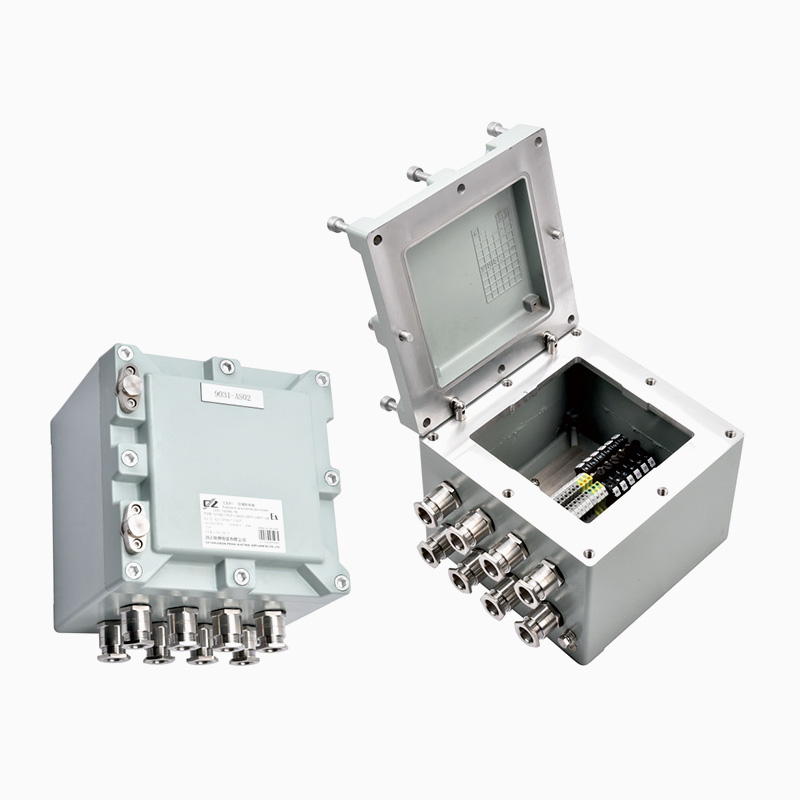

CZ1520/1 Flameproof terminal box

Prodcuts Features:

● Available in four modular sizes.
● Standard terminals.
● Ambient temperature: -55℃≤Ta≤+60℃.
● Degree of protection IP66.
● IECEx International certification and ATEX European Approval.

Product Parameter

Product type：	Explosion-proof terminal box
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1；2D/Db/zone 21
Min.ambient temperature：	-55℃
Max.ambient temperature：	+60℃
Degree of protection：	IP66
Rated voltage：	max 690V
Rated current：	max 216A
Earthing terminal：	max 95mm²
Material：	aluminum alloy enclosure, powder coated

Certification：	China: CNEx 18.5911X Ex mark: Ex dⅡC T6 / T5/T4 Gb Ex tD A21 IP66 T80℃/T95℃/T130℃ IECEx: IECEx CNEX18.0043X Ex mark: Ex eb Ex dbⅡC T6 / T5/T4 Gb Ex tb ⅢC T80℃/T95℃/T130℃ Db ATEX: CNEX 18ATEX0033X Ex mark: Ⅱ2GD Ex dbⅡC T6 / T5/T4 Gb Ex tb ⅢC T80℃/T95℃/T130℃ Db
Intended use:	Can be used in zone 1 and zone 2 Can be used in zone 21 and zone 22
Ambient temperature:	-55℃≤Ta≤+60℃
Degree of protection:	IP66
Rated voltage:	max 690V
Rated current:	max 216A
Type of terminal:	miniature terminal, common terminal
Earthing terminal:	max 95mm²
Earthing：	M6
Material:	aluminum alloy enclosure, powder coated

About CZ

CZ Electric Co., Ltd was established in 1990, is a CZ1520/1 Flameproof terminal box suppliers, and is headquartered in Jiaxing City, Zhejiang Province, CZ can provide users with comprehensive explosion-proof safety system solutions. Products are widely used in engineering projects such as petrochemicals, medical machinery, food processing, precision electronics, military ships, aerospace and aviation. The products are exported to 56 countries and regions such as the European Union, the Middle East, Southeast Asia, Russia, Japan, Australia. CZ has agents or offices in 28 countries and regions, and has participated in the construction of key projects: oil and gas pipeline projects in cooperation between China and Turkmenistan , PetroChina Fushun 10 million tons refinery 800,000 tons ethylene project, Kuwait National Petroleum HEAVY OILLONG TERM TESTING FACILITY (HOLTTF) project, Oman National Petroleum Corporation MABRUK PROJECT-PRRF project, Australia Ichthys liquefied natural gas (LNG) project and other projects and won praise from users.
