CKX Explosion-proof circuit breakers module

Prodcuts Features:

● CKX box can be mounted inside of Ex e box to improve its degree of protection, and corrosion resistance
● CKX box can be used separately but with Ex d cable glands.
● CKX box can be used together with Ex d cable bushings or conductive flame-proof shaft.
● Circuit breakers, magnetic starters, big switches and other normal components can be mounted inside. Operation handle is available to mount externally to operate the internal components.
● Measuring instruments can be mounted inside and can be observed from window.

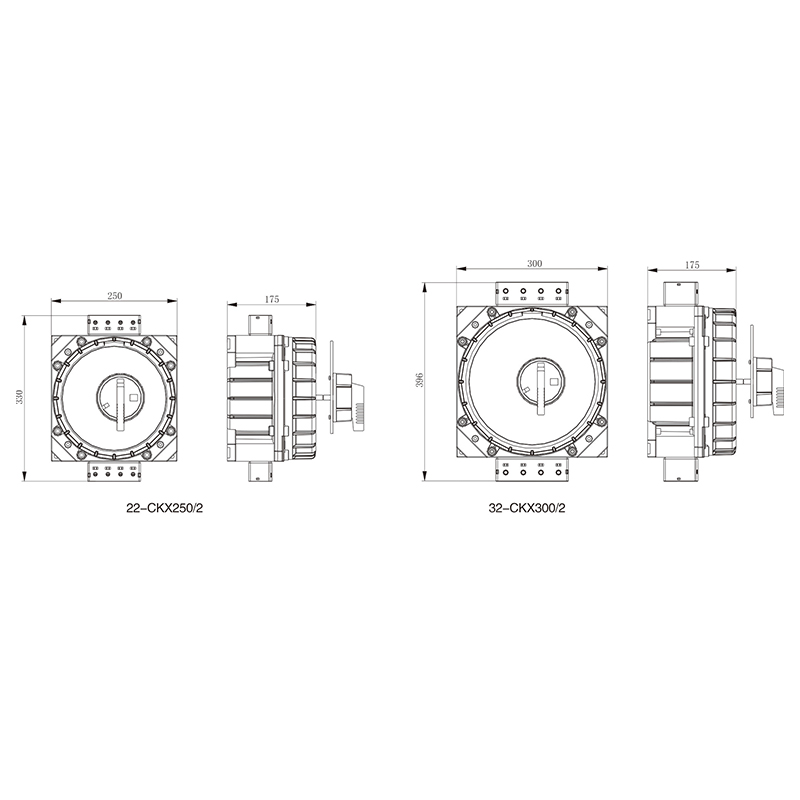

● Four outline dimensions, and seven different specifications.
● Rated voltage: up to 690V.
● Rated current: up to 250A.
● IECEx International certification and ATEX European Approval.

Product Parameter

Product type：	Explosion-proof circuit breakers module
Certification：	CCC IECEX ATEX
Application range (zones)：	2G/Gb/zone 1
Min.ambient temperature：	-20℃
Max.ambient temperature：	+60℃
Min.operating temperature：	-20℃
Max.operating temperature：	+110℃
Rated voltage：	220/230V, 380/400V
Rated current：	max. 250A
Material of enclosure：	aluminum-alloy

Certification：

China: CNEx16.1134U Ex mark: Ex d ⅡC Gb / Ex tD A21 IP66

IECEx: IECEx CML 18.0064U Ex mark: Ex db eb ⅡB+H2 Gb Ex tbⅢC Db

ATEX: CML 18ATEX 1117U Ex mark: Ⅱ2G Ex db eb ⅡB+H2 Gb Ex tbⅢC Db

Intended use:

Can be used in zone 1 and zone 2

Ambient temperature：

-20℃≤Ta≤+60℃

Operating temperature：

-20℃ ~ +110℃

Rated voltage：

220/230V、380/400V

Rated current:

max. 250A

Rated ultimate short-circuit breaking capacity Icu:

see below table, ( kA)

Rated service short-circuit breaking capacity Ics:

see below table, ( kA)

Rated voltage	CKX250/2-2-EZD100				CKX300/2-2-EZD160、250
	E		M		E		M		S
	lcu	lcs	lcu	lcs	lcu	lcs	lcu	lcs	lcu	lcs
220/230V	50	25	65	30	50	25	85	43	100	50
380/400V	25	13	35	17	25	13	36	18	50	25

Terminals of circuit breaker module:

10 ~ 50mm² ( CKX250 ) 25 ~ 120mm² ( CKX300 )

Material of enclosure:

aluminum-alloy
